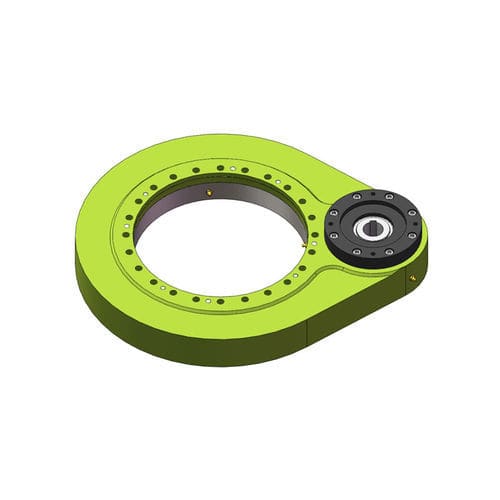

Slewing drive S-II-O-0411

Slewing drive - S-II-O-0411 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-0411 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-0411 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 8,254 Nm
(6,087.83798 ft.lb)

Max.: 10,896 Nm
(8,036.477179 ft.lb)

Gear ratio

5.6 unit

Description

Module - M - mm - 6 Teeth number of wheel - Z2 - － - 84 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 281 Axial static load - Co ax - KN - 751 Radial dynamic load - Crad - KN - 194 Axial dynamic load - Cax - KN - 226 Weight - W - Kg - 102.8

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-II Medium load series

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
