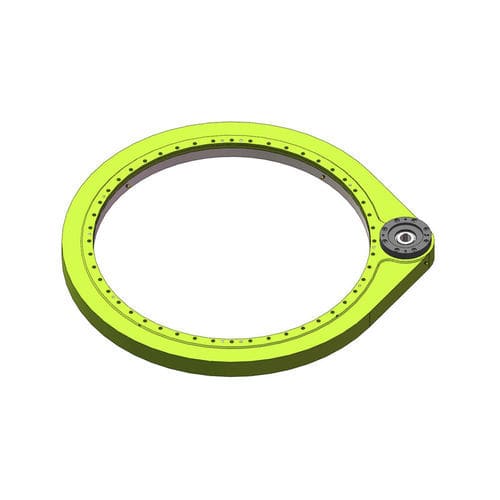

Slewing drive S-II-O-1091

Slewing drive - S-II-O-1091 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-1091 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-1091 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 20,236 Nm
(14,925.307653 ft.lb)

Max.: 25,992 Nm
(19,170.715384 ft.lb)

Gear ratio

13.2 unit

Description

Module - M - mm - 6 Teeth number of wheel - Z2 - － - 198 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 746 Axial static load - Co ax - KN - 1996 Radial dynamic load - Crad - KN - 281 Axial dynamic load - Cax - KN - 327 重量/Weight - W - Kg - 233
