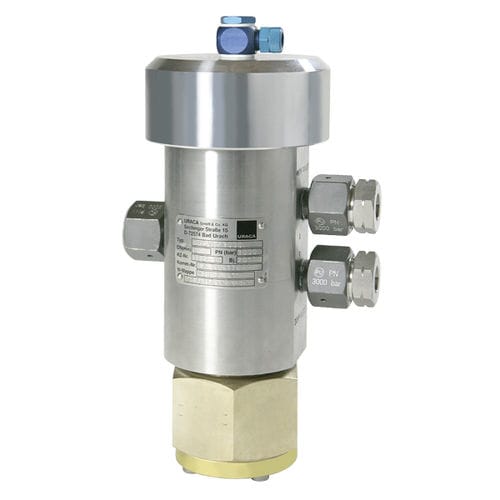

Pneumatically-operated valve PUSV seriesshut-off3/2-wayswitching
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Function
- shut-off
- Number of channels
- 3/2-way
- Associated function
- switching
- Other characteristics
- compact, high-pressure
- DN
95 mm, 130 mm, 195 mm
(3.74 in, 5.118 in, 7.677 in)- Pressure
Min.: 5 bar
(72.5 psi)Max.: 3,000 bar
(43,511.3 psi)- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 100 l/min
(26.42 us gal/min)
Description
An extremely compact 3/2-way valve for the highest demands in high-pressure technology.The pneumatically controlled 3/2-way valve for fast, uninterrupted switching between two high-pressure consumers. Special features: Defined rest position on failure of the actuating energy, under operating pressure switchable, available as double valve for ultra-compact design. Application range for operating pressures of up to 3,000 bar.
TECHNICAL SPECIFICATION
•Dimensions: 389 mm
•Weight: 11.2-23.3 kg
SPECIFIC FEATURES
•Bypass valve
•Consumer shut-off valve
•Unloading valve
