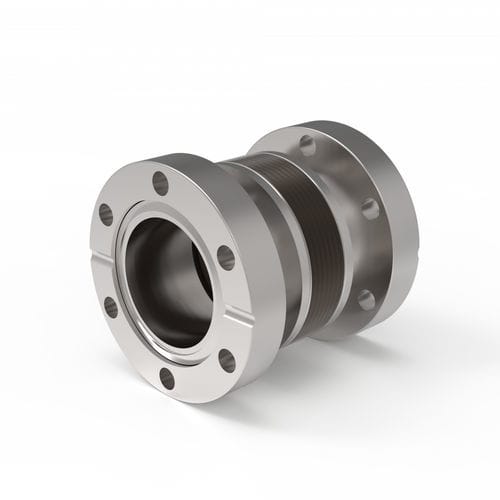

Cylindrical bellows EWB40R-10

stainless steelweldedaxial

Category - Edge Welded Bellows - CF, DN40 Axialstroke - 10 mm Connection length - 29 mm Bellow pair count - 7 Item description - Edge Welded Bellow, stainless steel 316L DN40CF, one rotatable flange flanges with clear holes flange material stainless steel 304L Inner Ø: 39 mm; Outer Ø: 59 mm total length: 63 bis 73 mm linear stroke: 10 mm max. bake out temperature 80°C max. working temperature 20°C lifetime 10.000 cycles more technical information in the data sheet Article no. - 300564 Connection type - CF Nominal diameter DN - 40 Diameter 2 - 39 mm Compressed length - 63 mm Spring rate axial - 9,3 N/mm Connection length 2 - 29 mm Material - stainless steel 316L Max. mounting length - 73 Min. mounting length - 63 Lifecycles - 10000 Purity class - PCS Connection type 2 - CF Nominal diameter DN 2 - 40
