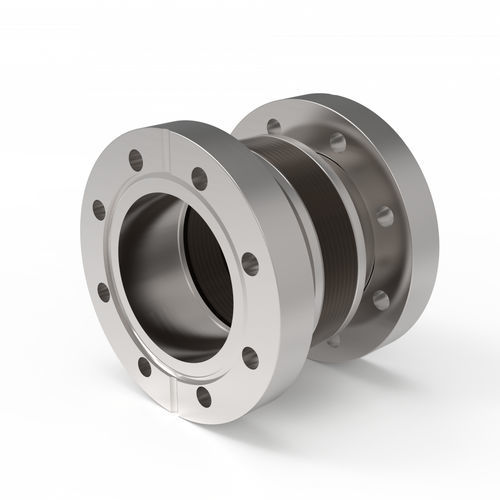

Cylindrical bellows KF16EWB-10stainless steelweldedaxial
Add to favorites
Compare this product
Characteristics
- Form
- cylindrical
- Material
- stainless steel
- Other characteristics
- welded, axial
Description
Category - Edge Welded Bellows - KF, DN16
Axialstroke - 10 mm
Connection length - 14 mm
Bellow pair count - 9
Item description - Edge Welded Bellow, axial, vacuum inside
mounting flanges (ISO 2861): DN16KF
Inner-Ø: 16 mm; Outer-Ø: 31,5 mm
Total Length: 32,1 mm up to 42,1 mm
Axial Stroke: 10 mm
Lifetime: 10´000 cycles
Operating Temperature: 20°C
bakeable up to 80°C
Bellow Material (AISI): 316L
Please find more information in the datasheet
Article no. - 303774
Connection type - KF
Nominal diameter DN - 16
Diameter 2 - 16 mm
Spring rate axial - 10,6 N/mm
Connection length 2 - 14 mm
Material - stainless steel 316L
Lifecycles - 10000
Purity class - PCS
Connection type 2 - KF
Nominal diameter DN 2 - 16
