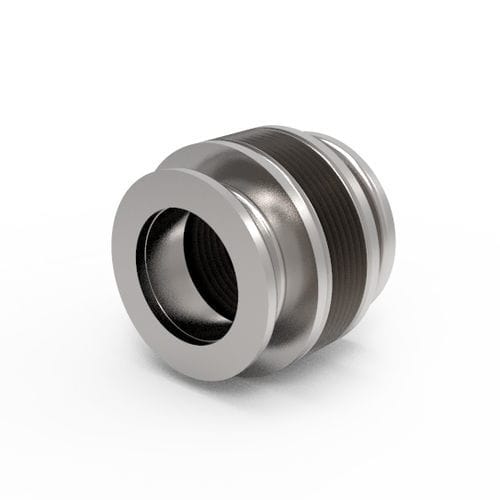

Cylindrical bellows KF25EWB-10

stainless steelweldedaxial

Category - Edge Welded Bellows - KF, DN25 Axialstroke - 10 mm Connection length - 14 mm Bellow pair count - 6 Item description - Edge Welded Bellow, axial, vacuum inside mounting flanges (ISO 2861): DN25KF Inner-Ø: 26 mm; Outer-Ø: 46 mm Total Length: 31 mm up to 41 mm Axial Stroke: 10 mm Lifetime: 10´000 cycles Operating Temperature: 20°C bakeable up to 80°C Bellow Material (AISI): 316L Please find more information in the datasheet Article no. - 306531 Connection type - KF Nominal diameter DN - 25 Diameter 2 - 26 mm Compressed length - 31 mm Spring rate axial - 12,5 N/mm Connection length 2 - 14 mm Material - stainless steel 316L Lifecycles - 10000 Purity class - PCS Connection type 2 - KF Nominal diameter DN 2 - 25
