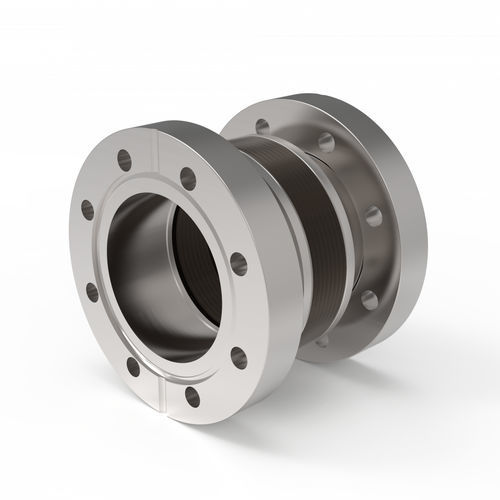

Cylindrical bellows EWB63R-20

stainless steelweldedaxial

Category - Edge Welded Bellows - CF, DN63 Axialstroke - 20 mm Connection length - 36 mm Bellow pair count - 8 Item description - Edge Welded Bellow, stainless steel 316L DN63CF, one rotatable flange flanges with clear holes flange material stainless steel 304L Inner Ø: 65 mm; Outer Ø: 90 mm total length: 76 to 96 mm linear stroke: 20 mm max. bake out temperature 80°C max. working temperature 20°C lifetime 10.000 cycles more technical information in the data sheet Article no. - 300566 Connection type - CF Nominal diameter DN - 63 Diameter - 90 mm Diameter 2 - 65 mm Compressed length - 76 mm Spring rate axial - 12 N/mm Connection length 2 - 36 mm Material - stainless steel 316L Lifecycles - 10000 Purity class - PCS Connection type 2 - CF Nominal diameter DN 2 - 63
