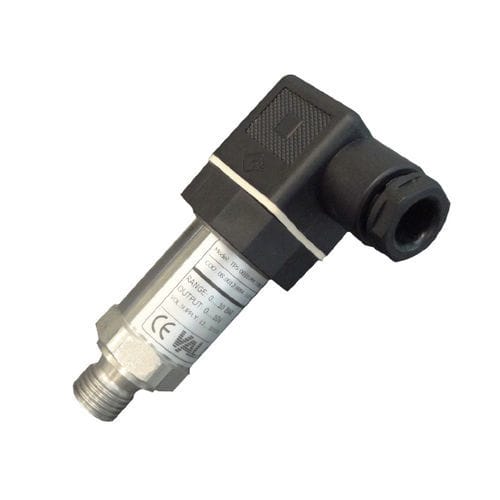

Relative pressure transmitter TPSmembranepiezoresistiveanalog
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane, piezoresistive
- Output
- analog
- Mounting
- threaded
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- IP65
- Pressure range
Max.: 600 bar
(8,702.26 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)
Description
For applications where it is necessary to measure pressure, or hydrostatic level with a high grade of accuracy.
The power supply to the sensors is between 12 and 30 VDC, the provided output signal is 0-10 V.
The body is made of stainless steel 1.4301 and the sensing element, diaphragm, stainless steel 1.4542.
The maximum length of the connection cable for connections to remote data acquisition system is 30 m.
• 0-10 V output signal.
• Piezoresistive sensor, stainless steel diaphragm.
