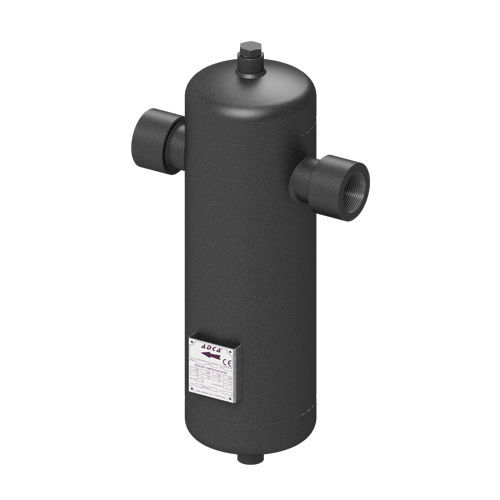

Water separator S16 series

centrifugal

The S16 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam or compressed air trap. MAIN FEATURES Several possibilities of installation. No moving parts. Maintenance-free design. Flanged condensate connection. Steam, compressed air and other gases. Female threaded ISO 7 Rp or NPT. Always with the condensate discharge pointing downwards. See IMI – Installation and maintenance instructions.
