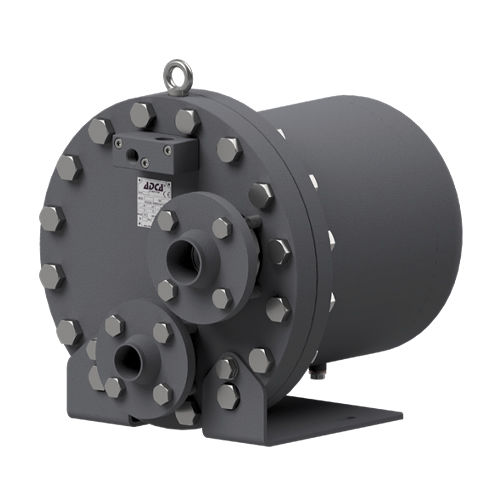

Trap with water pump PPT14 series

condensatesteamautomatic

The ADCAMat PPT14 automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop. The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit. Whenever the steam trap function is incapable of draining condensate, the pump function is activated (using external steam pressure). The pump replaces the necessary positive pressure to lift the condensate to the return system, before water logging occurs, avoiding water hammer and consequent noise, equipment damage, corrosion, unstable temperature control, etc. Compact design. Hardened stainless steel wear parts. High-endurance inconel springs. Low filling head to minimize installation space. No electric requirements or NPSH issues. Suitable for hazardous environments. Low running costs. No motive or flash steam is lost. Operation under vacuum conditions. Level gauge. Drain and lift steam condensate from heat exchangers, among others. CONNECTIONS: Flanged EN 1092-1 PN 16 Flanged ASME B16.5 Class 150 Female threaded ISO 7 Rp
