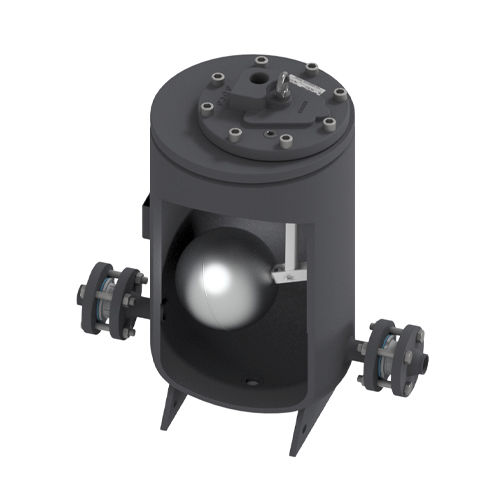

Condensate pump PPO14

for gasself-primingstationary

The ADCAMat PPO14 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel. Liquid flows by gravity into the pump through an inlet check valve, lifting the float. At this point, the motive fluid intake valve is closed while the vent valve is open. As the float reaches its highest position the motive fluid intake valve opens and the vent valve closes, allowing the motive fluid to enter the pump body. The pressure in the pump builds up just enough to overcome backpressure. The pressurized liquid opens the outlet check valve and the discharge starts. The liquid discharged may be quantified through a special counter, enabling the pump to function as a reliable flow meter. When the float reaches its lower position the motive fluid intake valve closes and the vent valve opens allowing the liquid to fill the pump once again, repeating the cycle. Hardened stainless steel wear parts. High-endurance inconel springs. Low filling head to minimize installation space. No electric requirements or NPSH issues. Suitable for hazardous environments. Low running costs. Level gauge. Stroke counters. To lift steam condensate and other liquids compatible with the construction. CONNECTIONS: Flanged EN 1092-1 PN 16 Flanged ASME B16.5 Class 150 Female threaded ISO 7 Rp
