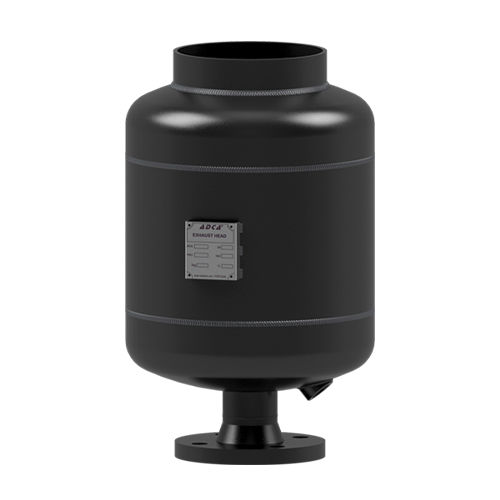

Exhaust head EH series

The ADCA EH series exhaust heads were designed to protect personnel from injury and exterior of buildings from harmful effects of steam ejection to atmosphere. The head is fitted at the end of a vertical exhaust pipe and effectively retains the moisture separated from the steam for draining. MAIN FEATURES Stainless steel separating element. Quiet operation. Reduces discharge velocity. Corrosion protection (sand blasted, metalized and painted). Complete stainless steel construction. Open vertical steam vent pipes in blowdown vessels, boiler feedtanks, etc. EH/S – carbon steel body. EH/SH – thermal spraying zinc coating and black painted. EH/SS – stainless steel body.v Flanged EN 1092-1 PN 16. Flanged ASME B16.5 Class 150. Others on request. Vertical installation. The drain should be directed to a safe place. Not recommended to fit at the discharge outlet of safety relief valves. See IMI – Installation and maintenance instructions.
