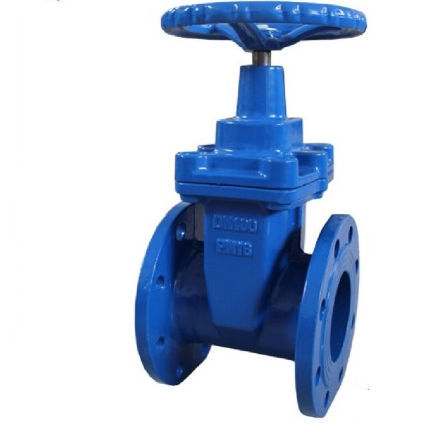

Gate valve with handwheelflangestainless steel
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Body
- flange, stainless steel, brass, cast iron, bronze
- Applications
- flange, holding
- Other characteristics
- socket weld, with butt weld ends
- DN
Max.: 600 mm
(23.622 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 16 bar
(232.1 psi)
Description
BS NRS Cast Iron Gate Valve
1. Body: Cast iron
2. Disc: Cast Iron
3. Stem: Stainless Steel
4. Bonnet Gasket: EPDM
5. Bonnet: Cast Iron
6. Sealing Ring: EPDM
7. O Ring: EPDM
8. Stem Nut: Brass, Bronze
9. Holding Ring: Brass
10. Handwheel: Cast Iron, Ductile Iron
Design and Manufacture: BS5163
Face to Face Dimension: BS5163
Flange End Dimension: EN1092
