Overview

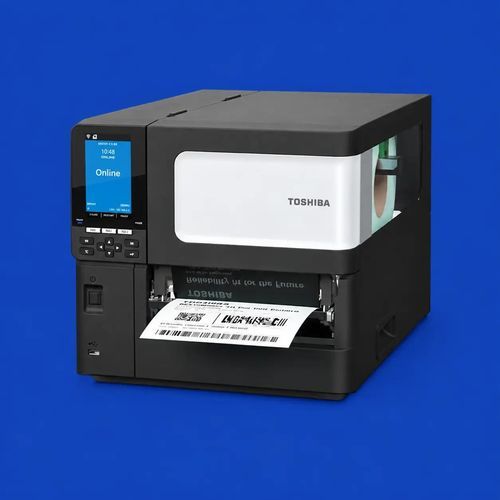

The Toshiba BX620T is an industrial 6-inch (152 mm) thermal transfer and direct thermal label printer offering 305 DPI resolution and a maximum print width of 162 mm. Designed for heavy-duty, wide-label applications in logistics, manufacturing and asset identification.

Product summary
The BX620T combines Flat Head printing technology with a 305 DPI print resolution to deliver sharp barcodes, text and graphics across wide media. With media alignment centred and support for ribbons up to 600 m, it minimises downtime and maintains consistent print quality across the full label width.

Platform & performance
Built on Toshiba’s A-BRID platform, the BX620T includes a dual-core 1.0 GHz processor, Linux-based OS and real-time print engine for fast data processing and easy integration. It supports automatic emulation recognition (TPCL, ZPL II, DPL, SBPL, IPL) and direct PDF printing with automatic rotation and scaling, enabling smooth deployment in industrial IT environments.

What makes this printer special?
As a 6-inch industrial thermal transfer printer, the BX620T offers centred media handling, long ribbon lengths (up to 600 m), flexible connectivity and optional modules (peel-off, cutter, external I/O). e-BRIDGE CloudConnect enables remote device management and monitoring, while native SDKs and drivers simplify integration with Windows, Linux, macOS, SAP and mobile platforms.

Who is this printer suitable for?
Recommended for logistics, warehousing, manufacturing, automotive and infrastructure sectors that require wide, durable labels (pallets, drums, part identification, outdoor assets). The combination of industrial construction, Flat Head print method and 305 DPI resolution suits applications demanding durability and high print clarity.

Technical attributes
Printer DPI: 305 DPI
Interface: USB 2.0 High-Speed, 10/100/1000 Base-T LAN

Technical specifications

• Print head: Flat Head
• Resolution: 305 DPI / 12 dots per mm
• Model: TS02
• Printing method: direct thermal / thermal transfer
• Print speed: up to 305 mm/s
• Print width: 47 to 162 mm
• Batch print length: 6 to 1,498 mm
• Cutting length: 21.4 to 1,498 mm
• Peel-off print length: 21.4 to 1,496 mm
• Processor: dual-core, 1.0 GHz
• Memory: 1 GB RAM, 8 GB ROM
• User interface: full-colour LCD, 2 LEDs, 11 buttons
• Weight: 18.4 kg
• Dimensions: 331 x 460 x 310 mm
• Mains voltage: AC 100–240 V, 50/60 Hz
• Paper/backing width: 50 to 165 mm
• Label thickness: 0.13 to 0.17 mm
• Inner diameter of the media roller: 76.2 mm
• Outer diameter of media roll: max. 200 mm
• Media alignment: centred
• Media type: vellum paper and labels, matt-coated paper, glossy-coated paper, synthetic film, PET film and polyamide
• Media type: roll and continuous paper / fanfold
• Near-end detection: adjustable (e.g. when 10% of material remains)
• Connectivity - Standard: USB 2.0 High-Speed and 10/100/1000 Base-T LAN
• Connectivity - Optional: RS232, Wi‑Fi, Bluetooth 5.2 and external I/O
• Printer languages/emulation: automatic recognition of TPCL, ZPL II, DPL, SBPL, IPL and PDF
• Printer drivers: Windows 11/10, Windows Server 2022/2019, SAP, Linux/CUPS and macOS
• SDK: iOS, Android, Windows and Java
• Labelling software: NiceLabel Free and BarTender UltraLite
• IoT device management: e-BRIDGE CloudConnect
• Print PDFs directly with automatic rotation and scaling
• Ribbon tape width: 55 to 170 mm
• Ribbon core diameter: 25.7 mm (±0.2 mm)
• Maximum ribbon length: 600 metres
• Maximum ribbon diameter: 90 mm
• Ribbon near-end detection: adjustable to 30 or 70 metres
• Options: Disc cutter, Peel-off module, External Media Manager, RS232 interface, Wi‑Fi + Bluetooth, External I/O
• Real-time clock: standard
• Cover damper: standard
