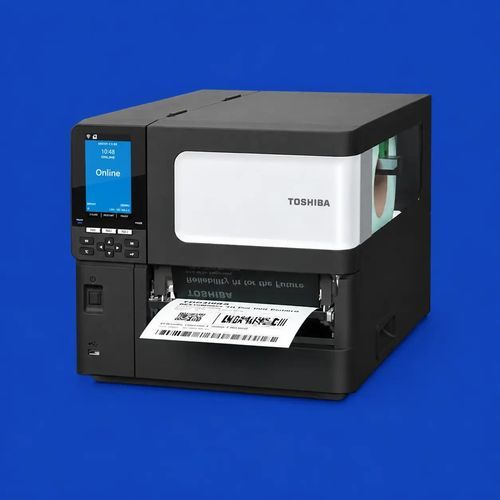

Direct thermal label printer BX620T

thermal transferBluetoothLAN

Overview
Toshiba BX620T is an industrial 6-inch flat-head label printer built for high-volume production of wide, durable labels. It delivers 203 DPI resolution, a maximum printable width of 162 mm and supports both thermal transfer and direct thermal methods. Typical applications include pallet and drum labeling, automotive part identification and outdoor asset tagging.

Platform & performance
The BX620T uses Toshiba's A-BRID platform with a dual-core processor and a Linux-based OS for fast data handling and reliable continuous operation. The device supports long ribbons (up to 600 m), automatic language recognition and direct PDF processing with automatic rotation and scaling.

Connectivity and expandability
Standard interfaces include USB 2.0 High-Speed and Gigabit LAN. Optional modules provide Wi‑Fi, Bluetooth 5.2, RS232 and external I/O. Remote device management is available via e-BRIDGE CloudConnect.

Who is this for?
Designed for industrial and logistics environments requiring wide-format, durable labels. Relevant sectors include manufacturing, logistics, automotive, infrastructure and compliance labeling. Suitable for inline production where high throughput and long ribbon runs are needed.

Key features

• Flat Head print technology for consistent prints on thick and coated materials
• 203 DPI resolution for clear barcodes, text and graphics
• Maximum print width up to 162 mm (6-inch class)
• Print speeds up to 305 mm/s for high-throughput operations
• A-BRID platform with automatic language recognition and direct PDF printing (rotation & scaling)
• Support for standalone applications and built-in data conversion
• Long ribbon support (up to 600 m) with adjustable near-end detection

Included product attributes

• Printer DPI: 203 DPI
• Interface (standard): USB, LAN

Technical specifications

• Print head: Flat Head
• Resolution: 203 DPI / 8 dots per mm
• Model: GS02 (BX620T series)
• Printing method: direct thermal / thermal transfer
• Print speed: up to 305 mm/s
• Print width: 47 to 162 mm
• Batch print length: 6 to 1,498 mm
• Cutting length: 21.4 to 1,498 mm
• Peel-off print length: 21.4 to 1,496 mm
• Processor: dual-core, 1.0 GHz
• Memory: 1 GB RAM, 8 GB ROM
• User interface: full-colour LCD, 2 LEDs, 11 buttons
• Weight: 18.4 kg
• Dimensions: 331 x 460 x 310 mm
• Mains voltage: AC 100–240 V, 50/60 Hz
• Paper/backing width: 50 to 165 mm
• Label thickness: 0.13 to 0.17 mm
• Inner diameter of media core: 76.2 mm
• Maximum media roll outer diameter: 200 mm
• Media alignment: centred
• Supported media types: plain paper, matt-coated, glossy-coated, synthetic film, PET and polyamide; roll and continuous/fanfold
• Near-end detection: adjustable (e.g. at 10% remaining)
• Connectivity (standard): USB 2.0 High-Speed, 10/100/1000 Base-T LAN
• Connectivity (optional): RS232, Wi‑Fi, Bluetooth 5.2, external I/O
• Printer languages/emulation: auto-recognition of TPCL, ZPL II, DPL, SBPL, IPL and PDF
• Printer drivers: Windows 11/10, Windows Server 2022/2019, SAP, Linux/CUPS and macOS
• SDK: iOS, Android, Windows and Java
• Labelling software: NiceLabel Free and BarTender UltraLite
• IoT device management: e-BRIDGE CloudConnect
• Direct PDF printing with automatic rotation and scaling
• Ribbon width: 55 to 170 mm
• Ribbon core diameter: 25.7 mm (±0.2 mm)
• Maximum ribbon length: 600 m
• Maximum ribbon diameter: 90 mm
• Ribbon near-end detection: adjustable to 30 or 70 m
• Options: disc cutter, peel-off module, External Media Manager, RS232 interface, Wi‑Fi + Bluetooth, external I/O
• Standard: real-time clock and cover damper
