Thermal transfer label printer BX610T

direct thermalBluetoothUSB

Product overview

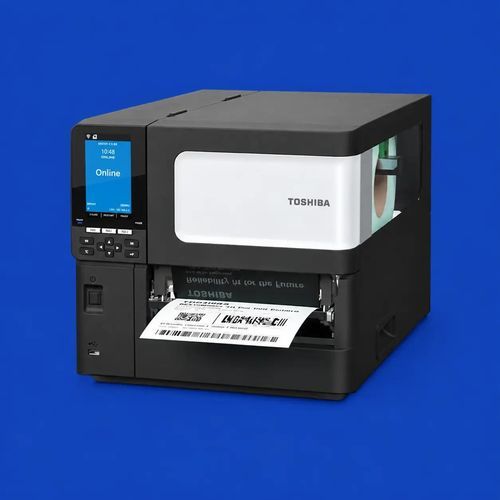

The Toshiba BX610T is a 6-inch Near-Edge industrial label printer with 305 DPI resolution, up to 305 mm/s print speed and a maximum print width of 162 mm. Designed for continuous, high-volume production environments, it supports both direct thermal and thermal transfer printing and includes USB and Gigabit LAN as standard.

Details
Based on Toshiba's A-BRID platform, the BX610T integrates a dual-core 1.0 GHz processor with a Linux-based OS and a real-time print engine for fast data processing and reliable throughput. The Near-Edge TS02 print head produces high-definition barcodes, text and graphics at 305 DPI. Large ribbon capacities (600 or 800 m depending on configuration) and ribbon-save technology reduce consumable changes and operational costs. The A-BRID platform provides automatic printer language recognition, direct PDF processing with rotation and scaling, a built-in data converter and support for standalone applications. Remote device management is available via e-BRIDGE CloudConnect.

Connectivity & options
Standard interfaces: USB 2.0 High-Speed and Gigabit LAN (10/100/1000 Base-T). Optional interfaces and accessories include RS232, Wi‑Fi, Bluetooth 5.2, external I/O, disc cutter, rotary cutter, peel-off module, External Media Manager, real-time clock and cover damper.

Who is this printer suitable for?
The BX610T 305 DPI is intended for organisations that produce large volumes of wide labels and require continuous, reliable operation, such as logistics and transport, warehousing, manufacturing and the automotive industry. With a 162 mm maximum print width it is suited to pallet labels, component identification and other industrial wide-label applications.

Technical specifications

• Print head: Near-edge
• Resolution: 305 DPI / 12 dots per mm
• Model (print head): TS02
• Printing method: direct thermal / thermal transfer
• Print speed: up to 305 mm/s
• Print width: 47 to 162 mm
• Batch print length: 6 to 1,498 mm
• Cutting length: 21.4 to 1,498 mm
• Peel-off print length: 21.4 to 1,496 mm
• Processor: dual-core, 1.0 GHz
• Memory: 1 GB RAM, 8 GB ROM
• User interface: full-colour LCD, 2 LEDs, 11 buttons
• Weight: 19.6 kg
• Dimensions: 331 x 460 x 310 mm
• Mains voltage: AC 100–240 V, 50/60 Hz
• Paper/backing width: 50 to 165 mm
• Label thickness: 0.13 to 0.17 mm
• Inner diameter of the media roller: 76.2 mm
• Outer diameter of media roll: max. 200 mm
• Media alignment: centred
• Media type: vellum paper and labels, matt-coated paper, glossy-coated paper, synthetic film, PET film and polyamide
• Media formats: roll and continuous paper / fanfold
• Near-end detection: adjustable (e.g. 10% remaining)
• Standard connectivity: USB 2.0 High-Speed, 10/100/1000 Base-T LAN
• Optional connectivity: RS232, Wi‑Fi, Bluetooth 5.2, external I/O
• Printer languages/emulation: automatic recognition of TPCL, ZPL II, DPL, SBPL, IPL and PDF
• Printer drivers: Windows 11/10, Windows Server 2022/2019, SAP, Linux/CUPS and macOS
• SDK: iOS, Android, Windows and Java
• Labelling software: NiceLabel Free and BarTender UltraLite
• IoT device management: e-BRIDGE CloudConnect
• Direct PDF printing with automatic rotation and scaling
• Ribbon tape width: 55 to 170 mm
• Ribbon core diameter: 25.7 mm (±0.2 mm)
• Maximum ribbon length: 600 or 800 metres
• Maximum ribbon diameter: 90 mm
• Ribbon near-end detection: adjustable to 30 or 70 metres
• Ribbon-save technology: standard
• Options: disc cutter, rotary cutter, peel-off module, External Media Manager, RS232 interface, Wi‑Fi + Bluetooth, external I/O, real-time clock, cover damper
• Product attributes: Printer DPI: 305 DPI; Interface: USB, LAN
