helical gear reducer / concentric / high-performance / low-noise
GH series

{{requestButtons}}

Characteristics

  • Type:

    helical

  • Shaft orientation:

    concentric

  • Performance:

    high-performance, low-noise, maintenance-free

  • Other characteristics:

    aluminum, transmission, industrial, compact, gearbox, for conveyors, foot-mounted, for machine tools, for packaging machines, for lathes, for asynchronous motors, for food packaging, low-speed

  • Torque:

    100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 200 - 500 Nm, 10 - 20 Nm, 1 - 5 Nm, 500 - 1000 Nm

  • Torque:

    Max.: 1,330 Nm (980.9577 ft.lb)

    Min.: 17 Nm (12.5386 ft.lb)

  • Rotational speed:

    Max.: 600 rpm (3,769.91 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

  • Power:

    Max.: 3.7 kW (5.03 hp)

    Min.: 0.08 kW (0.11 hp)

Description

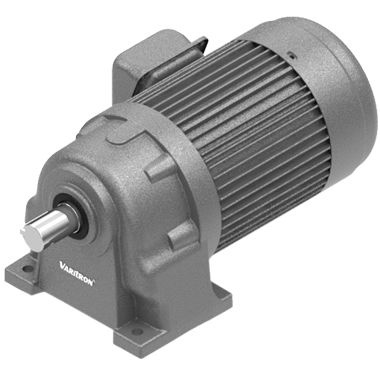

GH Series Helical Inline Geared Motors Foot Mount
Varitron GH Helical Gear Inline Geared Motors Foot Mount with High Quality alloy steel machined and carbonized with precision tooth profile.
