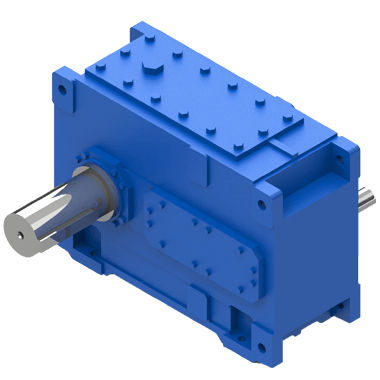

helical gearbox / parallel-shaft / high-torque / for heavy loads

{{requestButtons}}

Characteristics

  • Type:

    helical

  • Shaft orientation:

    parallel-shaft

  • Performance:

    high-torque, for heavy loads, high-power

  • Other characteristics:

    air-cooled, industrial, solid-shaft, miniature, synchromesh mechanical shift, shaft-mounted, transmission, for mining equipment, for industrial vehicles, for conveyors, for plastics, dual-shaft, for tire manufacturing, for continuous operation, hollow-shaft, single-stage, for the chemical industry, for petroleum products, for wind turbines, for industrial applications, for machinery, for textiles, mechanical transmission, modular, custom, for printing machines, for the petrochemical industry, for food industry machinery, vertical output shaft, turntable, multi-stage, for the metallurgical industry, vertical output shaft

  • Torque:

    > 10 kNm

  • Torque:

    Min.: 0 Nm (0 ft.lb)

    Max.: 470,000 Nm (346,654.2102 ft.lb)

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 2,000 rpm (12,566.37 rad.min-1)

  • Power:

    Min.: 2.5 kW (3.4 hp)

    Max.: 5,366 kW (7,295.73 hp)

Description

Industrial Helical Gearbox Units
The Varitron Helical gearbox unit portfolio is by far the most comprehensive range of industrial gear units in the market. It includes a multifaceted range of universal gear units, application-specific gear units and customer-specific solutions. Today, our standardized industrial gear units are especially important due to their high level of availability, their quality and their attractive price-performance ratio. Our selection of universal gear unit designs is perfectly supplemented by a wide range of standard options such as motor connection flange, backstops and taconite seals. The gear units supporting horizontal and vertical mounting positions, they can also be installed on the front(base- or shaft-mounted gear units). The standardized connections offer flexibility in terms of mounting options, such as those required for temperature control or gearbox lubrication.
