cycloidal gear reducer / coaxial / precision / industrial
RV- C series

{{requestButtons}}

Characteristics

  • Type:

    cycloidal

  • Shaft orientation:

    coaxial

  • Performance:

    precision

  • Other characteristics:

    industrial, compact, for servo motors, for robotics, two-stage

  • Torque:

    Max.: 12,260 Nm (9,042.512 ft.lb)

    Min.: 65 Nm (47.9415 ft.lb)

  • Rotational speed:

    Max.: 2,000 rpm (12,566.37 rad.min-1)

    Min.: 0.05 rpm (0.31 rad.min-1)

Description

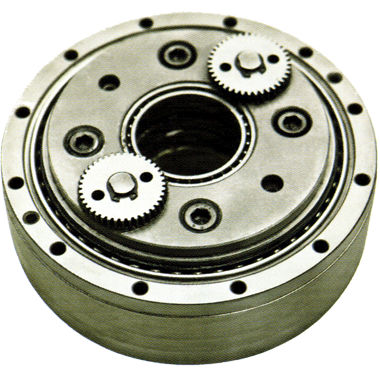

RV-C Precison Cycloidal Gear
The RV- C series precision cycloidal gear reducer provides high-end performance in a very compact and highly rigid component type configuration. The gearbox incorporates rolling contact elements to provide high efficiency and long life, integrated angular bearings to support external loads and a 2-stage reduction design to reduce vibration and inertia while increasing ratio capabilities.

●RELIABILITY, LONG LIFETIME, PRECISION

●Less than 3 arc-min Backlash (High precision 1 arc-min available)

●Very compact with high torsional rigidity

●In-line version for greater design and space saving flexibility

●High Ratio availability up to 1/212, without increasing gearbox size

●Torque capacity up to 5X rated torque (E-Stop)

●100% Continuous Contact of the cycloidal pin & gear teeth design provides high shock load capacity and very low backlash since forces are distributed throughout the reducer

●2-Stage Reduction Structure reduces vibration due to the lower speed rotation of the two cycloidal gears, special input shaft design lowers inertia
