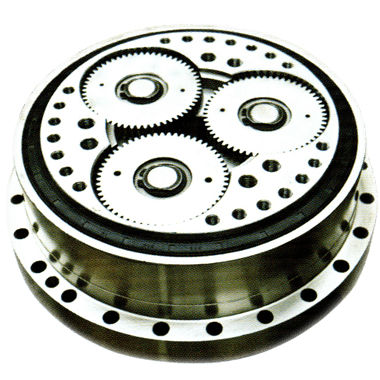

Cycloidal gear reducer RV-E series
coaxial100 - 200 Nm50 - 100 Nm

cycloidal gear reducer
cycloidal gear reducer
cycloidal gear reducer
Add to favorites
Compare this product


Characteristics

Type
cycloidal
Shaft orientation
coaxial
Torque
100 - 200 Nm, 50 - 100 Nm, 2 - 5 kNm, 200 - 500 Nm, 1 - 2 kNm, 5 - 10 Nm, 500 - 1000 Nm, 5 - 10 kNm
Number of stages
two-stage
Performance
precision, low-backlash, high-performance, high-torque, for heavy loads, high-efficiency
Applications
for heavy handling equipment, for servo motors, gearbox
Other characteristics
compact, with flange, for robotics, universal
Rotational speed

Min.: 0.05 rpm (0.31 rad.min-1)

Max.: 2,000 rpm (12,566.37 rad.min-1)

Power

Min.: 0.01 kW (0.01 hp)

Max.: 30 kW (40.79 hp)

Description

RV-E Precison Cycloidal Gear The RV-E series precision cycloidal gear reducer provides high-end performance in a very compact and highly rigid component type configuration. The gearbox incorporates rolling contact elements to provide high efficiency and long life, integrated angular bearings to support external loads and a 2-stage reduction design to reduce vibration and inertia while increasing ratio capabilities. ●RELIABILITY, LONG LIFETIME, PRECISION ●Less than 3 arc-min Backlash (High precision 1 arc-min available) ●Very compact with high torsional rigidity ●In-line version for greater design and space saving flexibility ●High Ratio availability up to 1/212, without increasing gearbox size ●Torque capacity up to 5X rated torque (E-Stop) ●100% Continuous Contact of the cycloidal pin & gear teeth design provides high shock load capacity and very low backlash since forces are distributed throughout the reducer ●2-Stage Reduction Structure reduces vibration due to the lower speed rotation of the two cycloidal gears, special input shaft design lowers inertia
