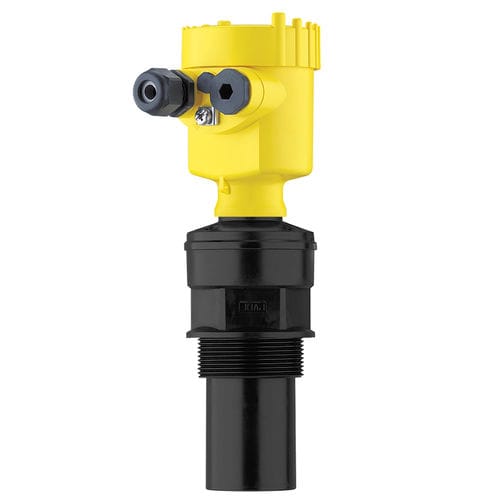

Ultrasonic level sensor VEGASON 62
for liquidsbulk solidsHART

ultrasonic level sensor
ultrasonic level sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for liquids, bulk solids
Interface
HART, PROFIBUS, 4-20 mA, 2-wire
Applications
for vessels, for basins
Other characteristics
stainless steel, maintenance-free, IP67, IP68, IP66
Level range

Max.: 8 m (26'02")

Min.: 0 m (0'00")

Process pressure

Max.: 2 bar (29.01 psi)

Min.: 0 bar (0 psi)

Process temperature

Max.: 80 °C (176 °F)

Min.: -40 °C (-40 °F)

Description

Ultrasonic sensor for continuous level measurement Measures liquids up to 8 m and bulk solids up to 3.5 m away Application area Extensive selection of electronics, housings, approvals. Process fittings: G2 or 2 NPT The VEGASON 62 is an ultrasonic sensor for continuous level measurement of liquids and bulk solids. Typical applications are the measurement of liquids in storage vessels or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. Application areas can be found in all industries. The non-contact measuring principle is unaffected by product features and allows a setup without medium. Your benefit Price-favourable solution for simple applications Maintenance-free operation through non-contact measuring principle Reliable measurement independent of product features Measuring range - Distance 8 m Process temperature -40 ... 80 °C Process pressure -0.2 ... 2 bar Accuracy ± 10 mm / ± 0.4" Materials, wetted parts PVDF Threaded connection ≥ G2, ≥ 2 NPT Seal material EPDM FKM Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Profibus PA Foundation Fieldbus 4 … 20 mA/HART - two-wire 4 … 20 mA/HART - four-wire Ambient temperature -40 ... 80 °C

Catalogs

No catalogs are available for this product.

See all of VEGA TECHNIQUE‘s catalogs
