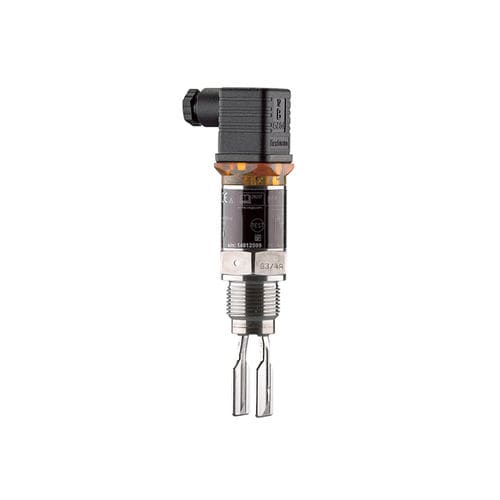

Tuning fork level switch VEGASWING 51
for liquidsfor the food industryfor the pharmaceutical industry

tuning fork level switch
tuning fork level switch
Add to favorites
Compare this product


tuning fork
for liquids
for the food industry, for the pharmaceutical industry, for hygienic applications
stainless steel, plastic
Other characteristics
economical, precision, IP65, IP67, IP68
Process temperature

Max.: 150 °C (302 °F)

Min.: -40 °C (-40 °F)

Process pressure

Max.: 64 bar (928.24 psi)

Min.: 0 bar (0 psi)


Vibrating level switch for liquids For liquids (density: > 0.5 ... 2.5 g/cm³) Application area It detects the limit level reliably and with millimetre accuracy directly at the mounting position. Small level switch version with stainless steel housing The VEGASWING 51 is a universal level switch with small dimensions for use in liquids. Independent of the mounting position, it detects reliably with millimetre accuracy the limit level. The instrument can be used as empty or full detector, as approved overfill protection, dry run protection or pump protection in vessels and pipelines. The VEGASWING 51 is an economical solution with maximum reliability and safety. Your benefit Precise and reliable function due to product-independent switching point Low maintenance costs Minimum time and cost expenditure thanks to simple setup without medium Measuring range - Distance - Process temperature -40 ... 150 °C Process pressure -1 ... 64 bar Version Standard Extended temperature range Hygienic applications Materials, wetted parts 316L Threaded connection ≥ G½, ≥ ½ NPT Hygenic fittings Clamp ≥ 1" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 hygienic fitting F40 with compression nut SMS DN38 Seal material no media contact Housing material Plastic Stainless steel Protection rating IP67 IP65 IP68 (0,2 bar) Output Contactless electronic switch Transistor (NPN/PNP) IO-Link Ambient temperature -40 ... 70 °C Foodstuffs/Pharma 3A EHEDG FDA
