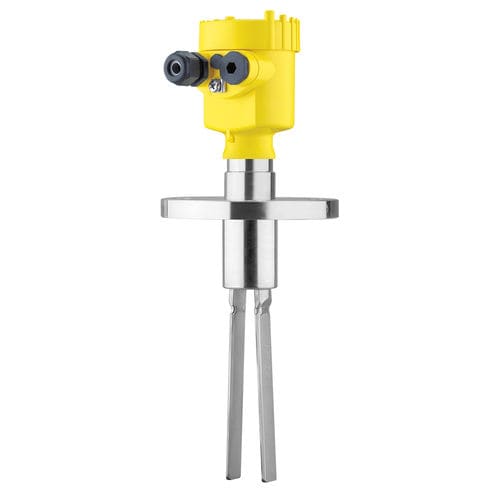

Tuning fork level switch VEGAWAVE 61
for bulk materialsfor tanksfor silos

tuning fork level switch
tuning fork level switch
tuning fork level switch
tuning fork level switch
Add to favorites
Compare this product


Characteristics

Technology
tuning fork
Medium
for bulk materials
Applications
for tanks, for silos
Mounting
threaded, flange
Other characteristics
precision, compact, stainless steel, plastic, aluminum, IP67, IP68, ATEX, IP66, rugged
Process pressure

Min.: 0 bar (0 psi)

Max.: 25 bar (362.59 psi)

Process temperature

Min.: -50 °C (-58 °F)

Max.: 250 °C (482 °F)

Description

Vibrating level switch for powders For powdery and fine-grained bulk solids from density 8 g/l – compact version Application area It detects the limit level reliably and with millimetre accuracy directly at the mounting position. The tuning fork design is very robust and unaffected by buildup. Grain size: max. 10 mm The VEGAWAVE 61 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. limit level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density. Your benefit Low costs for maintenance through robust design Minimum time and cost expenditure thanks to simple setup without medium Reliable function through product-independent switching point Process temperature -50 ... 250 °C Process pressure -1 ... 25 bar Version Standard Detection of solids in water with temperature adapter Materials, wetted parts 316L Threaded connection ≥ G1½, ≥ 1½ NPT Flange connection ≥ DN50, ≥ 2" Hygenic fittings Clamp ≥ 2", DN50 - DIN32676, ISO2852 Seal material no media contact Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire NAMUR Ambient temperature -40 ... 80 °C Scope ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide UKR Sepro / Ukraine INMETRO / Brazil SIL qualification SIL2 Indication Pluggable display module PLICSLED
