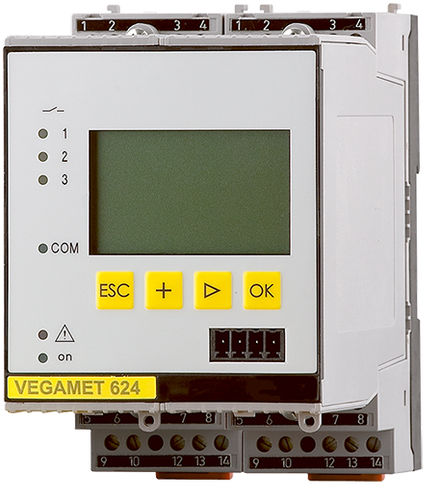

Digital signal conditioner VEGAMET 624

4-20 mADIN railfor level sensing

Controller and display instrument for level sensors Controller for a 4 ... 20 mA/HART sensor Application area The VEGAMET 624 controller powers the connected 4 … 20 mAA/HART sensor, processes and displays the measured values. The VEGAMET 624 is ideal for simple control tasks in level, gauge and process pressure measurements. For inventory management in remote storage silos, interfaces for simple remote data transmission are integrated. Comprehensive adjustment functions enable individual adaptations to the respective application. Your benefit Simple data recording and history retrieval from instruments with digital interface Simple integration into the Intranet/Extranet through integrated Web server Steady utilization of the pumps through integrated pump management Protection rating IP20/IP30 Input with transmitter power supply 1 x 4 … 20 mA/HART sensor input passive Output 1 x fail safe relay 1 x Ethernet 1 x RS232 3 x operating relay 3 x 0/4 … 20 mA current output Ambient temperature -20 ... 60 °C Signal input (specify) 4 … 20 mA/HART Signal output (specify) 4 … 20 mA Operating relay Fail safe relay Ethernet RS232 Display Display & adjustment Adjustment PACTware/DTM On-site adjustment Indication Display/adjustment module
