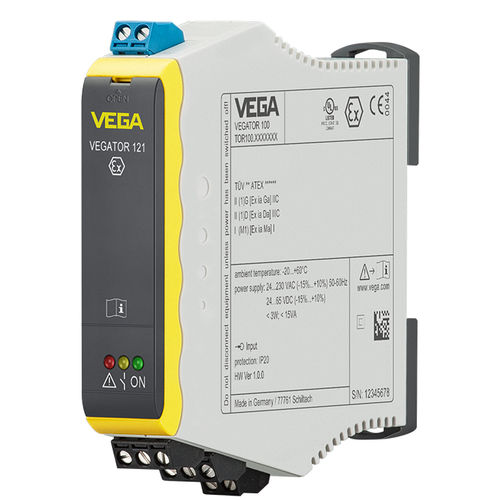

DIN rail signal conditioner VEGATOR 121

single-channelfor level sensing

Single channel controller for level detection Transmission of 8/16 mA signals for level signalling (single channel) Application area The VEGATOR 121 is a controller for level detection with relay output for the vibrating level switches VEGASWING, VEGAVIB and VEGAWAVE with electronics version "Two-wire 8/16 mA“. With this instrument simple control tasks can be solved. Typical applications are monitoring functions such as overflow or dry run protection. Optionally a false signal output is available. Your benefit Simple and comfortable function test by means of test key (also for SIL and WHG) Simple installation though carrier rail mounting as well as detachable, coded terminals Comprehensive monitoring detects short circuit and open circuit of the measuring line and disturbances in the sensor Flexible application area by switching over option of the fail safe relay to the second function relay Technical specifications Protection rating IP20 Input 1 x sensor input two-wire 8/16 mA Output 1 x operating relay (SPDT) Optionally 1 x fail safe relay output (SPDT) Ambient temperature -20 ... 60 °C Signal input (specify) Two-wire 8/16 mA Signal output (specify) Operating relay Fail safe relay Scope ATEX / Europe CSA / Canada FM / USA IEC / worldwide Explosion protection Intrinsic safety Ex ia Protection through housing St Ex Overfill protection WHG SIL qualification SIL2 Display & adjustment Adjustment DIP switch Indication LED
