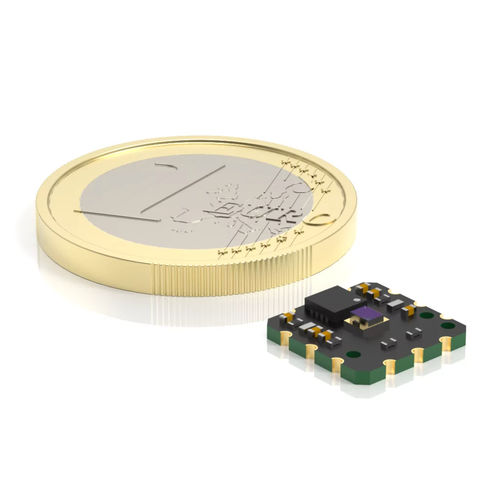

IR photovoltaic detection module AM series

InAsSbwith integrated amplifierwith integrated temperature controller

The AM03100-02 is a cost-effective infrared detection module designed for high-volume applications. The detection structure is optimized for wavelengths up to 5 µm. The built-in differential amplifier provides high immunity to electromagnetic interference. Wide frequency bandwidth and low 1/f noise corner frequency provide efficient measurements with generally available sources of radiation, including MEMS heaters and pulsed LEDs or lasers. Small dimensions and solderable PCB provide easy mechanical integration with the target device. Features Spectral range: 2.5 to 5.7 µm Active area: 1 mm × 1 mm Bandwidth: DC up to 3 MHz Single, low-voltage power supply: 3.0 V Differential output Small dimensions: 10 mm × 10 mm III-V material Low weight: 0.3 g Applications Gas detectors with MEMS, LED, or laser sources Temperature sensors Embedded systems Portable devices
