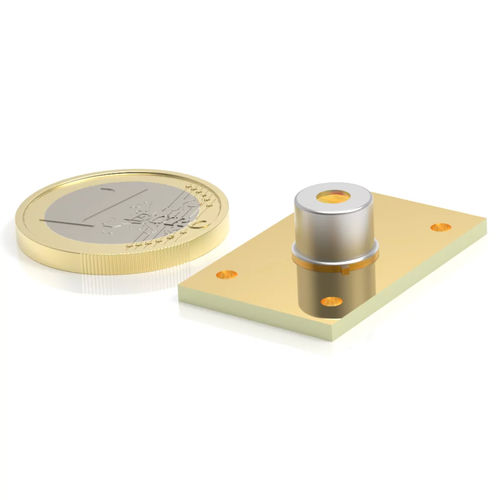

IR photovoltaic detection module AMS3140-01

InAsSbfor gas analysiswith integrated amplifier

Temperature stabilized, integrated amplifier and temperature controller The AMS3140-01 is a cost-effective solution designed for high volume applications. Built-in amplifier and temperature controller provide constant responsivity over a wide range of ambient temperatures. Wide bandwidth and low 1/f noise corner provide efficient measurements with generally available sources of radiation, including MEMS heaters, and pulsed LEDs or lasers. With differential output, the AMS3140-01 offers easy connectivity over connectors with high immunity to electromagnetic interference. Small dimensions provide easy mechanical and thermal integration with the target device. Features Spectral range: 2.5 to 5.7 µm Active area: 1 mm × 1 mm Built-in temperature controller Pin configurable chip temperature Low 1/f noise corner Bandwidth: DC up to 4 MHz Single low voltage power supply: 3.3 V Differential output Small dimensions: 30 mm × 19 mm × 10 mm III-V material Small board to board connector Low weight: 5 g Evaluation Kit and additional accessories available Applications Gas detectors with MEMS, LED, or laser sources Temperature sensors Embedded systems Portable devices
