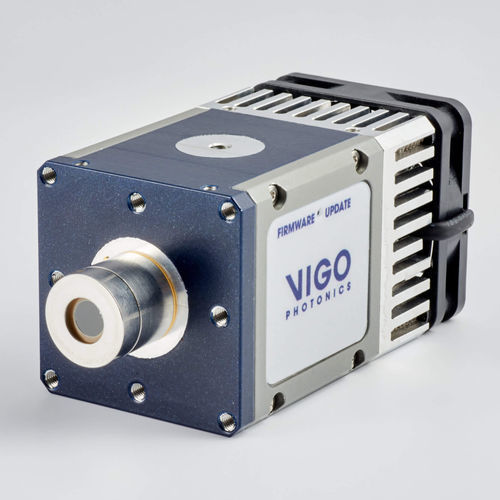

IR photovoltaic detection module LabM-I-4

HgCdTefor gas analysisexplosion detection

LabM-I-4 is a detection module featuring a TE-cooled, optically immersed photovoltaic IR detector based on an HgCdTe heterostructure (PVI-2TE-4-1x1-TO8-wAl2O3-36), integrated with a programmable, transimpedance amplifier (PIP series). For proper operation, the programmable VIGO thermoelectric cooler controller PTCC-01 (sold separately) and Smart Manager Software (freeware) are required. The LabM-I-4 detection module comes complete with PTCC-01 and Smart Manager Software, making it the best solution for prototyping and the R&D stage in various MWIR applications. This set provides a flexible approach to the different needs of system designers. Features Spectral range: 2.3 to 4.4 µm Frequency bandwidth: DC to 7.5 MHz (typ.) High performance and reliability DC offset compensation Built-in fan M4 mounting hole VIGO PTCC-01 TEC controller obligatory Compatible with optical accessories Versatile and flexible Quantity discounted price Fast delivery No minimum order quantity required Applications Gas detection, monitoring and analysis: CH4, C2H2, CH2O, HCl, NH3, SO2, C2H6, CO2 Breath analysis: C2H6, CH2O, NH3 Explosion prevention Exhaust gas denitrification Emission control (exhaust fumes, greenhouse gases) Contactless temperature measurements (metal industry) Research and prototyping
