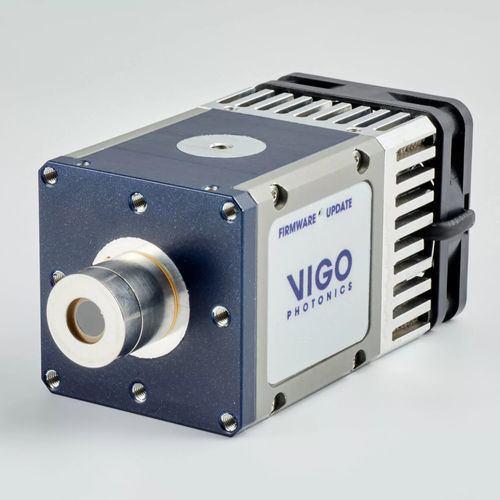

Transimpedance amplifier PIP series

programmableDCAC

PIP is a series of programmable, transimpedance amplifiers. Due to the modern internal configuration, they offers extreme flexibility combined with superior signal parameters and high reliability. Built-in voltage monitor allows to check and optimize the working conditions (supply voltages, detector bias voltage, first and last stage output voltage offset etc.). Features Compatible with VIGO TE-cooled IR detectors in the TO8 package Frequency bandwidth: up to 20 MHz (PIP-UC-LS), up to 200 MHz (PIP-UC-HS) AC or DC coupled Compatible with optical accessories M4 mounting hole Designed for effective heat dissipation VIGO PTCC-01 TEC controller obligatory Versatility and flexibility Programmable parameters Gain: in the 40 dB range Bandwidth: 150 kHz/1.5 MHz/20 MHz (PIP-UC-LS), 1.5 MHz/15 MHz/200 MHz (PIP-UC-HS) Coupling: AC/DC Detector’s parameters: temperature, reverse bias Output voltage offset
