Oil filter FVO series

basketmembranepressure

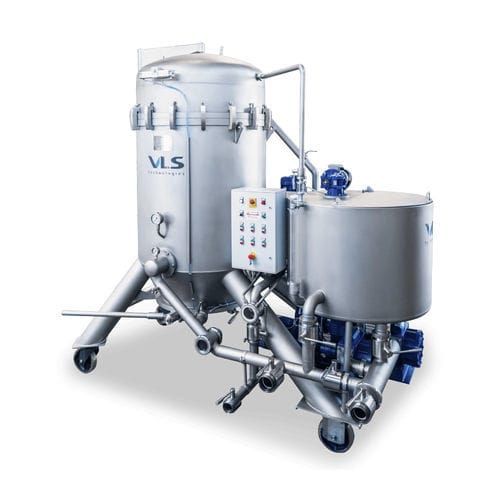

A pressure leaf leaf filter for the treatment of oil, already used by outstanding oil producers in Italy and abroad. Discover with VLS how to valorize your product. Standard version in stainless steel AISI304 with frame on wheels composed by: Filter chamber with pressure gauge, pressure switch, dished lid with C clamps, big diameter valve at the bottom for cake discharge, electrical motor vibrator for cake discharge. Dosing tank for filter aids preparation complete with agitator and membrane dosing pump with adjustable flow. Product inlet pipes complete with connections and accessories with one ball valve for product inlet, valves for different services, cast iron positive feed pump with double speed and pre-filter, lighted sightglass. Product outlet pipes complete with connections and accessories with valves for different services, flowrate indicator, lighted sightglass, sample valve and one ball valve for product outlet. Filters sectors in stainless steel AISI 304 130 micron screens in stainless steel AISI 316. Control board in polyestere reinforced with fiber glass self extinguish, IP 65 protection. Plastic tray for cake collecting at the end of filtration (FVO 5). Stainless steel trolley on wheels for cake collecting at the end of filtration (bigger dimensions). Voltage standard 400/3/50 Hz.
