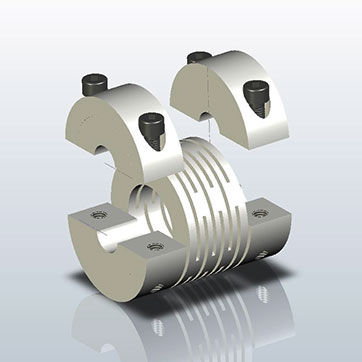

Spiral coupling ASK BBH

conveyorspindlemaintenance-free

Sliced couplings - Highlights The ASK sliced coupling is a solution for equalizing all kinds of offset. Its unique slit structure once revolutionized the coupling industry – over the years, this well established solution has come a long way and now represents the ideal solution for installation situations that involve misalignment or high levels of resonance. Not only does the one-part design ensure absolute stability at the highest speeds (>30,000 rpm) and a low mass moment of inertia, but it also enables maximum torsional stiffness to be achieved in the face of dynamic load changes. Features High torques Isogonal power transmission Equalizes offsets Good resonance damping Extremely torsionally stiff Variable materials High level of thermal stability Maintenance-free and non-wearing Low mass inertia Application areas All types of linear drive, rotary drive, oscillating chain drive, spindle drive Conveyor systems Special purpose machinery Tool lines Machine tools Robotized lines Precision tools Measuring systems Sectors Machine tool manufacture Special purpose machinery manufacture Medical technology Packaging industry Conveyor technology Robot technology Textile machinery Printing machinery Food technology Laboratory technology Environmental technology Semiconductor industry Vehicle manufacturing and railway technology Aerospace technology Sliced coupling with removable clamping hub, easy assembly Order example: ASK 040BBH D=15H7/18H7
