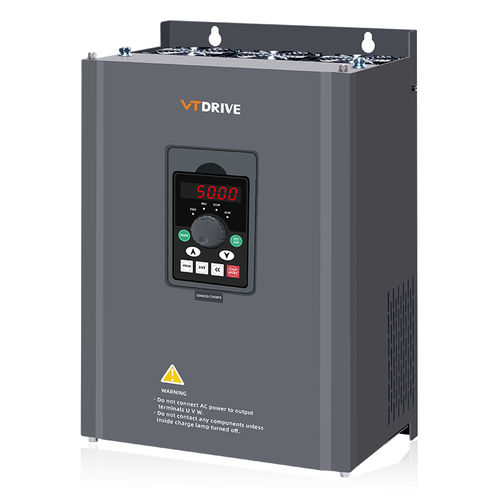

Vector control frequency inverter VT2-4T series

three-phasedigital displayModbus

Products: VT2 high quality Frequency inverters for general application Model: VT2-4T-045, VT2-4T-055 Voltage: 380V 3phase 50Hz Power: 45kw, 55kw Current: 90A, 110A IGBT： Infineon & Fuji 100% CPU: Texas Instruments 100% PCB: Coated Control: SVC, V/F Protected: IP20 Certification: CE Size: 490x330.5x229.3MM Environment - Using place - Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. Altitude - Below 1000m Ambient temperature - -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) Humidity - Less than 95%RH, without condensing Vibration - Less than 5.9m/s2 (0.6g) Storage temperature - －10℃~＋50℃ Multiple functional counter Programmable delay relay function simple PLC and 16 phase multiple speed control Variable selector and logic control for programming Application: VT2 series arrange from 0.4KW to 500KW, can be widely used in light and heavy industry. it’s suitable for most applications. Fan, water pumps, conveyor, compressors, HVAC, material handling, mining Industry, mixing, shop tools, extruding grinding, wire drawing, machine tools, food industry, chiller, packaging machines, processing machinery, printing machinery, cranes, rolling mills, paper, plastics and textile machines, machine tools, etc
