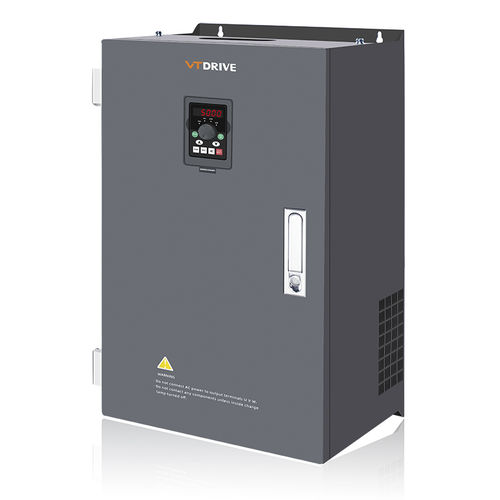

Vector control frequency inverter VT2-4T series

three-phasedigital displayModbus

Products: VT2 high quality Frequency inverters Model: VT2-4T-160, VT2-4T-185, VT2-4T-200, VT2-4T-220 Voltage: 380V 3phase 50Hz Power: 160kw, 185kw, 200kw, 220kw Current: 300A, 340A, 380A, 415A IGBT： Infineon & Fuji 100% CPU: Texas Instruments 100% PCB: Coated Control: SVC, V/F Protected: IP20 Certification: CE Size: 849x480x402MM Multiple functional counter Programmable delay relay function simple PLC and 16 phase multiple speed control Variable selector and logic control for programming Excellent torque control in open loop in winding and rewinding Excellent control performance for motor at 0.25hz with 150% output torque Maximum frequency： Vector control：0~500Hz V/F control：0~500Hz Over load capability： G type：150% rated current 60 seconds; 180% rated current 3 seconds P type：120% rated current 60 seconds; 150% rated current 3 seconds Application: VT2 series arrange from 0.4KW to 500KW, it’s suitable for most applications. Fan, water pumps, conveyor, compressors, HVAC, material handling, mining Industry, mixing, shop tools, extruding grinding, wire drawing, machine tools, food industry, chiller, packaging machines, processing machinery, printing machinery, cranes, rolling mills, paper, plastics and textile machines, machine tools, etc Environment - Using place - Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. Altitude - Below 1000m Ambient temperature - -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) Humidity - Less than 95%RH, without condensing Vibration - Less than 5.9m/s2 (0.6g) Storage temperature - －10℃~＋50℃
