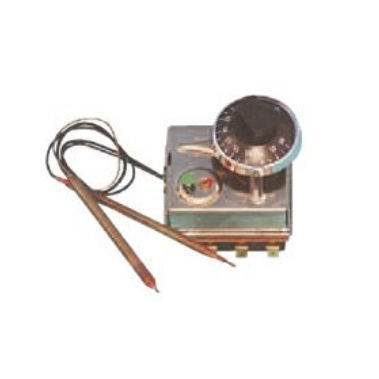

Electromechanical thermostat 9014,9030 series
bimetallicliquid dilationcapillary

electromechanical thermostat
electromechanical thermostat
electromechanical thermostat
electromechanical thermostat
electromechanical thermostat
electromechanical thermostat
electromechanical thermostat
Add to favorites
Compare this product


Characteristics

Heating technology
electromechanical, bimetallic, liquid dilation, capillary
Type
adjustable
Protection level
IP65, IP30
Other characteristics
manual reset
Temperature

Max.: 550 °C (1,022 °F)

Min.: -30 °C (-22 °F)

Description

Liquid expansion thermostats : Liquid expansion thermostats, with bulb and capillary in copper or stainless steel, are designed to guarantee safety and control of heating or cooling systems. Comprising 1, 2 or 3 contacts, they can be supplied bare or in an IP30 to IP55 plastic or aluminium protective case. Maximum switching capacity: 20 A under 400 V 3-phase. Several temperature ranges that can be set by push button are available from -30°C minimum to 550°C maximum. Rod models with fixing screw, positive security models or equipped with 2 bulbs to provide both control and safety functions and preset threshold limiters make up the Vulcanic range. Electromechanical thermostats : Electromechanical thermostats use metal expansion of the cartridge to operate a bimetallic strip. The set point (bimetallic voltage) can be set externally by a micrometric screw. Vulcanic electromechanical thermostats are designed to control the temperature of a solid by insertion into a cavity. They control the temperature of gases and liquids by insertion into a thermowell up to 315 °C, 20 bar. They are also currently used in the field of fire safety. The stainless steel 304 cartridge (diameter 1/2″ or 5/8″) can be equipped with an NPT threaded connector or a flange allowing simple assembly on the wall of a sleeve or enclosure. Vulcanic electromechanical thermostats, with NO or NC output contact, are offered with output by wires, with IP65 disconnectable connector, or in an IP65 aluminium or stainless steel protection box with 1 or 2 connector glands.
