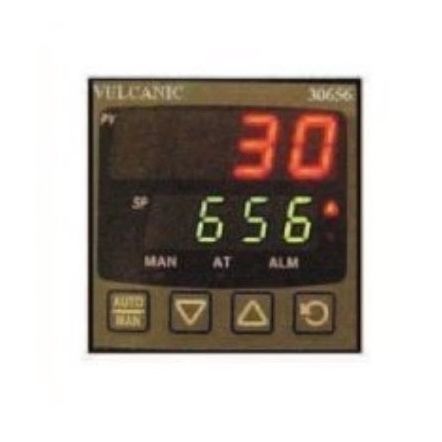

Digital temperature controller 30656 series

PIDIP66configurable

Autotune PID temperature controllers with 3 outputs. Configurable input : RTD (PT100) or thermocouples type B/J/K/L/M/R/S/T, or analogic voltage 0/10 V, 2/10 V, 0/5 V, 1/5 V, 0 / 50 mV, 1/50 mV, or loop powered analogic current 0/20 mA, 4/20 mA. Main output on request : SPDT relay 2 A / 240 VAC (on a resistive load) and pulse wave modulation 0/10 VDC for SSR (period 0,25 to 512 seconds / 20 mA max) configurable by strap, analog voltage 0/5 V, 0/10 V, 2/10 V or analogic current 0/20 mA, 4/20 mA (powered in 24 VDC). Output 2 and 3 on request : same as output 1. Optional circuit board A : see table hereafter. On/off optional control with adjustable differential, simultaneous display of measurement (red LED 8 mm high) and setpoint (green LED 6 mm high). Selftuning available during switch on operation. Supply voltage 100 to 240 VAC +/* 10% 50/60 Hz. Class 0,1. Front panel to IP 66. Mass 0,21 kg. Removable casing depth 110 mm, for cutting 45 X 45 mm.
