Mechanical vacuum gauge 123010A

Bourdon tubedual-scaleanalog

Overview
Collection of instruments and accessories for vacuum measurement, control and adjustment including gauges, switches (pneumatic, electromechanical, digital and IO-Link), regulators, valves and related accessories. Includes conversion tables, diagrams and sealing kits.

Vacuum and pressure unit conversion table
Vacuum and pressure unit conversion tables and pressure measurement unit conversion factors (absolute values).

• Document available: Vacuum and pressure unit conversion table

Vacuum and pressure gauges
The measurement method is based on the Bourdon spring principle using section tubes in a special copper alloy. Movement of the free end of the spring is amplified and transmitted to the pointer. Units are enclosed in a sturdy case with a clear protective disc. Available versions: radial or coaxial connectors, built-in or external flange, dry or glycerine filled. Except Ø 40 mm, all models have a double scale dial. Manufactured in compliance with EU safety and measurement standards.

• Product codes: 090315, 090320, 090325, 090310, 090110, 090116, 090210, 090510, 090516

Vacuum gauge with steel punch
Designed for immediate detection of vacuum inside tin cans and food containers. Uses a glycerine bath vacuum gauge with a hardened steel punch to perforate containers and a silicone vacuum cup to guarantee seal after perforation. Standard version shown; other versions available on request.

• Product code: 090599

Mini pneumatic vacuum switches
Extremely compact switches that give or remove a pneumatic signal when a preset adjustable vacuum level is reached. Pressure differential between set max and signal recovery is not adjustable. Suited for controlling vacuum generators and activating pneumatic valves.

• Product codes: 120130, 120230

Mini electromechanical vacuum switch
Compact vacuum switch that gives an electric signal at an adjustable vacuum level. Pressure differential between set max and reset is 50-60 mbar (not adjustable). Suited for safety, cycle start, cup grip checking, etc.

• Product code: 120210

Micro digital vacuum switches
Small devices, calibrated and temperature-compensated, provide precise digital signals to the set max measuring value. Switching point adjustable via screw; red LED indicates digital output status. Hysteresis is 2% of set value (not adjustable). Enclosure in polycarbonate; includes sensor and electronics and a coupler or aluminium manifold. Can rotate item 120510 to orient display. Vacuum connection via male/female M5; electrical connection via 3-pin cable. Suited for dry air and non-corrosive gases.

• Product codes: 120510P, 120510N, 120511P, 120511N

Analogue vacuum switch
Compact, lightweight ABS enclosure for machine mounting close to application. If calibrated, provides precise measurements. Adjustment range 0 to -1 bar. Outputs: analogue 1–5 V and digital PNP (configurable via Teach-In). Switching point and hysteresis programmable via push buttons; two bi-colour LEDs for status and error codes. Rotatable display without disconnecting vacuum connection. Dual vacuum connection: male G 1/8" or female M5. Electrical connection: M8 4-pin threaded plug; cables in PUR available.

• Adjustment range: 0 to -1 bar
• Vacuum connection: G 1/8" male or M5 female
• Electrical: M8 4-pin (PUR cable optional)
• Product code: 120710

Digital IO-Link vacuum and pressure switches
Robust ABS housing, compact and lightweight; calibrated and temperature-compensated with integrated display showing measured values. Two LEDs indicate status of two independent digital outputs. Switching points and hysteresis (0–100%) programmable; configurable functions include threshold comparison, NO/NC, unit selection, parameter lock, display inversion. Display rotatable without disconnecting pneumatic connections. Pneumatic connections: double-threaded G 1/8" male or M5 female. Electrical: M8 4-pin (PUR cable with axial or radial connector available). IO-Link version features IO-Link logo and inscription enabling bidirectional communication, remote parameterization and diagnostics for Industry 4.0 applications.

• Product codes: 121010, 122511

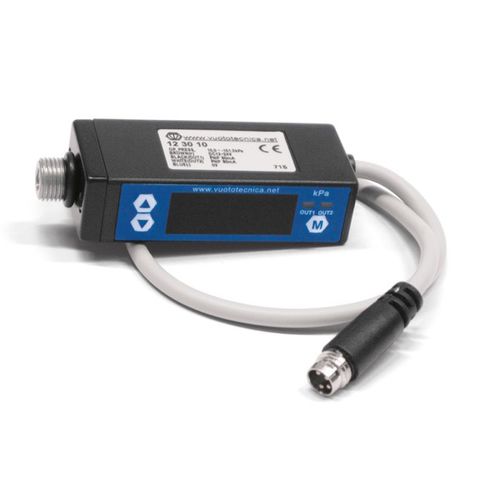

Digital vacuum switches (parallelepiped and other forms)
ABS enclosure, compact and lightweight. Calibrated and temperature-compensated with display so external vacuum gauge not required. Panel includes two LEDs (green and red) for two independent digital outputs. Switching points and hysteresis programmable via panel buttons. Additional programmable functions: comparisons, NO/NC, unit selection, function locking. Vacuum connection: G 1/8" male or M5 female. Electrical: push-in M8-4 pin jack or integrated PUR cable on specific items. Adjustment range from 0 to -1 bar for some items with two PNP outputs; others provide analogue 1–5 V plus digital outputs.

• Product codes: 123010A, 123010, 461-series
• Specific items: 12 30 10 (adjustment 0 to -1 bar), 12 30 10 A (1–5 V analogue + two PNP outputs)

Digital vacuum and pressure switches
ABS enclosure, temperature-compensated and calibrated. Display shows detected values; two LEDs indicate commutation statuses of two digital outputs (independent). Switching points including hysteresis programmable. Additional functions programmable (value comparisons, NO/NC, unit choice, value and function blocking). Vacuum/pressure connections via dual female G 1/8" thread; electrical connection via 4-conductor cable supplied. Suited for dry air and non-corrosive gases; recommended for safety signals, cycle starts and cup grip control. Hysteresis function allows energy saving by managing compressed air supply to vacuum generators.

• Product codes: 122010P, 123510P

Digital switches with two-colour display
Robust ABS housing, calibrated and temperature-compensated for high-precision measurement. Main two-colour display (red/green) programmable; secondary display for setting values. Two luminous indicators for outlets 1 and 2 indicate status for digital and analogue outputs. Switching points and hysteresis programmable. Additional functions programmable (comparisons, NO/NC, unit selection, value/function blocking). Vacuum connection via male G 1/8" or female M5. Electric connection via removable rapid-install data cable supplied as standard.

• Product codes: 124010, 124012, 124020

Accessories for analogue and digital vacuum and pressure switches
Cables (axial and radial), wall-mounting kit, fixing kit and other mounting accessories.

• Accessory product codes: 001220, 001221, 001222, 001230, 001231, 001232, 001240, 001241, 001242, 001243

Vacuum adjustment valves
When valves reach a pre-calibrated vacuum degree they introduce atmospheric air into the circuit to prevent increase beyond set value and keep it constant. Can be used as regulators only on circuits with one vacuum pump and one use (or multiple uses at same vacuum degree). Common use as safety valves on high-vacuum tanks or vacuum cup lifting systems. Vacuum level adjusted by rotating knurled bush; fine thread ensures accurate calibration. Operating temperature range -20 °C to +200 °C.

• Product codes: 040110, 040110INOX, 040210, 040210INOX, 040310, 040310INOX, 040410, 040410INOX, 040510, 040510INOX

Vacuum regulators
Control and maintain vacuum constant at pre-set value (secondary vacuum) regardless of source flow and fluctuations (primary vacuum). Operate by membrane-piston exploiting differential between secondary vacuum and atmosphere. Unlike adjusting valves, reducers do not release air into circuit, enabling multiple grip points at different vacuum degrees from a single source. Vacuum adjusted manually by knurled thumb screw.
Technical features

• Operation: membrane-piston regulator
• Adjustable operating pressure: from 800 to 1 mbar abs.
• Flow rate: from 2 to 160 m3/h (for standard sizes)
• Room temperature: -10 to +80 °C
• Installation position: any

• Product codes: 110110, 110210, 110310, 110410, 110510, 110610

Regulators for rough vacuum levels
Same principle but minimum adjustable vacuum near atmospheric pressure.
Technical features

• Operation: membrane-piston regulator
• Adjustable operating pressure: from 980 to 1 mbar abs.
• Capacity: from 20 to 160 m3/h
• Room temperature: -10 to +80 °C

• Product codes: 110350, 110550, 110650

Vacuum regulators with pneumatic adjustment
Adjustment via pneumatic cylinder compressed air supply instead of manual screw: higher supply pressure yields higher vacuum level. Regulators keep secondary vacuum constant regardless of primary vacuum. They do not introduce atmospheric air into circuit. Operate via short-stroke pneumatic cylinder and piston responding to pressure differential.
Technical features

• Operation: membrane-piston regulator
• Supply pressure: from 0 to 3 bar for some ranges; up to 5 bar for others
• Adjustable working pressure: typically from 800 to 1 mbar abs. (varies by item)
• Flow rate: from 2 to 160 m3/h (varies)
• Room temperature: -10 to +80 °C
• Installation position: any

• Product codes (examples): 110130, 110230, 110330, 110430, 110530, 110630, 110380, 110580, 110680

Additional regulator variants and higher-capacity items
Variants with larger flow rates and capacities (examples with flow up to several hundred m3/h) intended for centralised plants where multiple outlets require individualized adjustment. Examples include items with flow capacities up to 750 m3/h.

• Product codes (examples): 110811, 110911, 110831, 110931

Diagrams and supporting documents
Diagrams referring to level of vacuum versus servo-control supply pressure; values indicative depending on atmospheric pressure, source flow and compressed air quality.

• Supporting documents: diagrams and conversion tables (product-specific PDFs available)

Sealing kit for vacuum reducers
Set of sealing kits for vacuum reducers covering multiple part numbers.

• Sealing kit product codes: 0011113, 0011114, 0011115, 0011116, 0011117, 0011118, 0011119, 0011120, 0011121, 0011122, 0011123, 0011124, 0011125, 0011126, 0011127, 0011128, 0011129, 0011130

Caractéristiques / spécifications techniques

• Measurement principles: Bourdon spring gauges; digital and analogue sensors with temperature compensation
• Vacuum adjustment range: typical items adjustable from 0 to -1 bar or from 980/800 mbar abs down to 1 mbar abs depending on model
• Flow rates: from small values (2 m3/h) up to high-capacity units (160–750 m3/h) depending on series
• Operating temperatures: typical -10 °C to +80 °C for regulators; some valves rated -20 °C to +200 °C
• Vacuum connections: G 1/8" male or M5 female (dual-threaded on many devices)
• Electrical connections: M8 4-pin threaded plugs or integrated PUR cables; some items use 3-pin connector cables
• Outputs: digital PNP outputs, analogue 1–5 V outputs (configurable), IO-Link on specific models
• Programming/configuration: Teach-In or push-button programming for switching points and hysteresis; display rotation on many models
• Special features: glycerine-filled gauges for damping; hardened steel punch for container testing; IO-Link for remote parameterization and diagnostics
• Typical product codes: (see above per product block)
