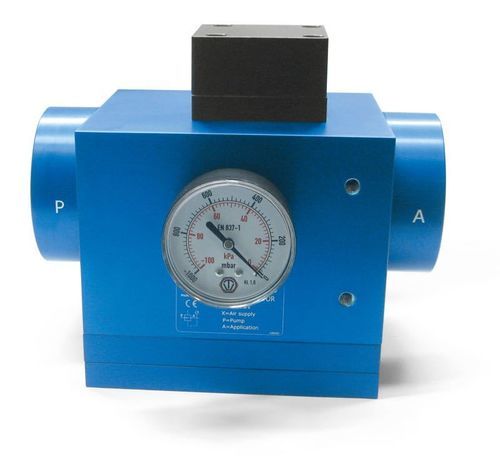

Diaphragm vacuum regulator Riduttori di vuoto con regolazione pneumatica

for high flow rates

Product
Vacuum regulator with pneumatic adjustment (membrane‑piston) designed for secondary vacuum control.

Description
These pneumatic vacuum regulators adjust the secondary vacuum by varying the supply pressure to a short‑stroke pneumatic cylinder: increasing the control pressure raises the secondary vacuum level and decreasing it lowers the level. Regulators maintain a preset secondary vacuum regardless of fluctuations in the pump or primary vacuum. Unlike vacuum control valves, regulators do not admit atmospheric air into the circuit, allowing multiple suction points with different vacuum levels fed from a single vacuum source.

Technical features

• Principle: membrane‑piston regulator
• Supply pressure (control): 0–5 bar (for items 11..31)
• Adjustable working vacuum: 1–800 mbar abs. (for items 11..31)
• Flow rate: 370–750 m3/h
• Operating temperature: -10 to +80 °C
• Installation position: any

Usage / Application
Designed for centralized vacuum systems where each suction point must be independently set and held at a defined secondary vacuum lower than the primary vacuum. Pneumatic adjustment allows remote or panel control via a pressure regulator, so regulators can be installed away from the control panel.

Product codes

• 110831
• 110931

Characteristics / Technical specifications

• Type: vacuum regulator with pneumatic adjustment
• Control principle: short‑stroke pneumatic cylinder vs floating piston (membrane‑piston)
• Control pressure range: 0–5 bar (items 11..31)
• Adjustable vacuum range: 1–800 mbar abs. (items 11..31)
• Flow capacity: 370–750 m3/h
• Ambient temperature range: -10 to +80 °C
• Mounting orientation: any
