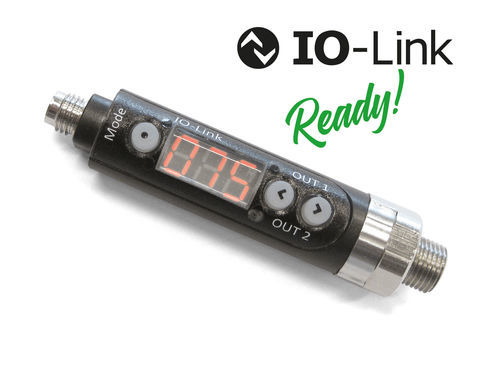

Pressure and vacuum switch with IO-Link interface 121010
electronicvacuumNO

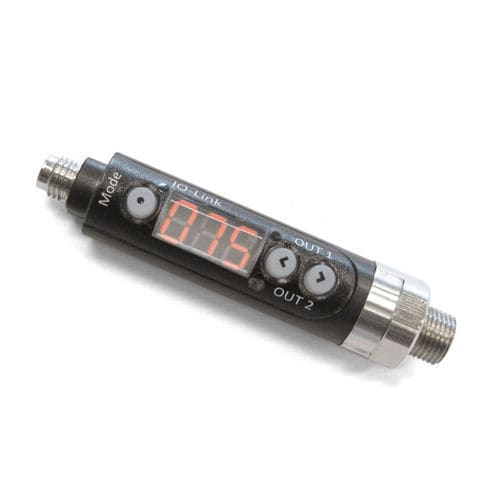

Pressure and vacuum switch with IO-Link interface - 121010 - VUOTOTECNICA - electronic / vacuum / NO
Pressure and vacuum switch with IO-Link interface - 121010 - VUOTOTECNICA - electronic / vacuum / NO
Add to favorites
Compare this product
Go to the VUOTOTECNICA website for more information

Characteristics

Technology
electronic
Pressure type
vacuum
Contact type
NC, NO, with IO-Link interface
Electrical connection
M8 connector
Process connection
G 1/8
Fluid
for gas, for air
Material
plastic
Applications
for pneumatic applications
Other characteristics
digital, compact, with display, with digital display, programmable, with LED indicator, temperature-compensated, smart

Description

Product description
  • Physical characteristics: Robust ABS housing, compact and lightweight; mountable on machinery and near the point of use.
  • Precision and display: Calibrated and temperature-compensated; integrated display shows values, making an external vacuum gauge unnecessary.
  • Signal indication: Two LEDs indicate the status of the two independent digital output signals.
  • Programming: Switching points and hysteresis (0–100% of set value) programmable via buttons. Configurable parameters include threshold comparison, NO/NC contacts, unit selection, parameter lock, and display inversion.
  • Display rotation: Free rotation to orient the display without disconnecting pneumatic connections.
  • Connections: Pneumatic connections available with double-threaded G 1/8 inch male or M5 female; electrical connection M8 4-pin (PUR cable with axial or radial connector available on request).
  • Applications: Measurement and control of dry air and non-corrosive gases; suitable for safety signals, cycle start, vacuum suction cup control, and optimizing energy consumption of vacuum generators.
  • IO-Link: IO-Link version distinguishable by the logo and the “IO-Link” inscription on the housing. Enables bidirectional digital communication, remote parameterization, and advanced diagnostics, providing smart sensor capabilities for Industry 4.0.
  • Product codes: 121010, 122511

Caractéristiques / spécifications techniques
  • Housing material: ABS, robust, compact, lightweight
  • Display: Integrated, calibrated, temperature-compensated; display values remove need for external gauge
  • Indicator LEDs: Two LEDs for two independent digital outputs
  • Programmable: Switching points and hysteresis 0–100% via buttons; threshold comparison; NO/NC; unit selection; parameter lock; display inversion
  • Display orientation: Free rotation without disconnecting pneumatic fittings
  • Pneumatic connections: Double-threaded G 1/8" male or M5 female
  • Electrical connection: M8 4-pin; PUR cable with axial or radial connector available
  • Media: Dry air and non-corrosive gases
  • Applications: Safety signals, cycle start, vacuum suction cup control, energy optimization of vacuum generators
  • IO-Link features: Bidirectional communication, remote parameterization, advanced diagnostics
  • Related documents: Technical PDF identified as 3.12_3.13 (product documentation)
