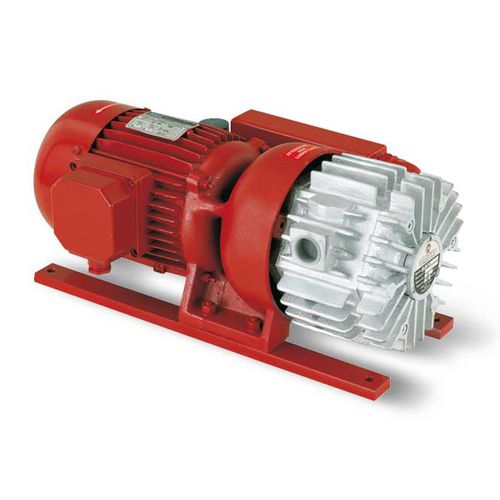

Rotary vane vacuum pump VTS FG series
drysingle-stagelow-noise level

rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
dry
Number of stages
single-stage
Other characteristics
low-noise level, with electric actuator, air-cooled
Flow rate

Max.: 35 m³/h
(1,236.01 ft³/h)

Min.: 10 m³/h
(353.15 ft³/h)

Description

These lubrication-free rotating vane vacuum pumps have a suction capacity of 10 and 35 m3/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication. The pump rotor is fitted on the motor shaft and supported by independent bearings located on both the pump locking flanges. The pump is surface-cooled; the heat is dispersed from the especially finned external surface by a radial fan located between the motor and the pump. A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. This range of pumps can be also supplied with single-phase electric motors.
