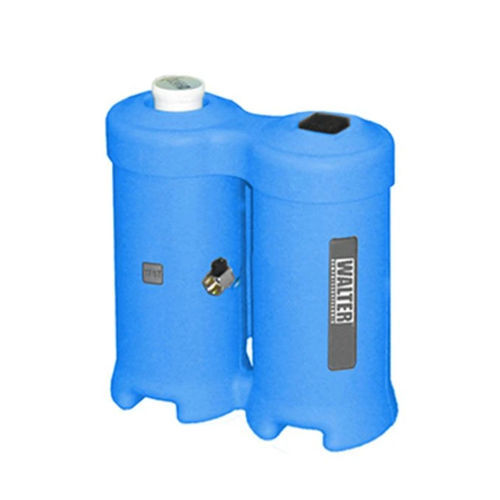

Condensate separator SWO 40

coalescingfor air compressorscompact

Description
The SWO 40 water-oil separator is designed to treat condensate generated in compressed air installations. It effectively separates water and oil contained in the condensate, allowing safe discharge of treated water to the sewer in accordance with environmental regulations. The separator reduces disposal costs and helps ensure compliance with current standards.

Application
Model SWO 40 is suitable for flows up to 4000 l/min (240 m³/h), making it appropriate for larger compressed air systems with elevated condensate loads. The unit provides stable and efficient separation during continuous operation.

Construction and connections
The separator is fitted with G 1/2" inlet and outlet connections for integration with standard pneumatic systems. Its compact design (407 x 185 x 404 mm) allows installation in technical rooms while maintaining high performance.

Technical data:

• Maximum flow: 4000 l/min (240 m³/h)
• Connections: G 1/2" (inlet/outlet)
• Dimensions (W x D x H): 407 x 185 x 404 mm
• Function: separation of water and oil from condensate of compressed air systems
• Designed for continuous operation in larger installations
• Benefits: reduced disposal costs, compliance with environmental requirements
