Condensate separator SWO 100coalescingfor wastewater treatmentcompact
Add to favorites
Compare this product
Characteristics
- Separated substance
- condensate
- Technology
- coalescing
- Application domain
- for wastewater treatment
- Other characteristics
- compact
- Flow
600 m³/h
(21,188.8 ft³/h)- Length
750 mm
(30 in)- Width
650 mm
(26 in)
Description
Product description

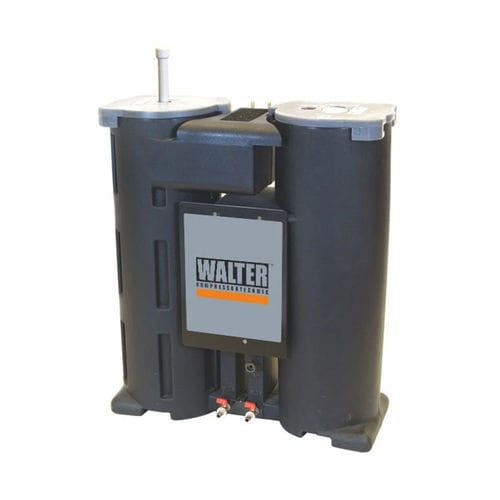

The SWO 100 water–oil separator is used in compressed air installations to treat condensate generated during compression. It separates oil from water to allow discharge of treated water to the sewer in compliance with environmental requirements and applicable standards.
Application
The SWO 100 is intended for high-capacity systems, handling flows up to 10000 l/min (600 m³/h). It is suitable for extensive industrial installations where condensate volumes are high and efficient separation is required.
Design features
The unit is equipped with two G 1/2" inlet connections and a G 1" outlet connection to facilitate integration with existing compressed air networks. The compact construction with dimensions 750 x 650 x 240 mm allows installation in technical spaces without occupying large floor area.
Technical data
Flow l/min: 10000
Flow m³/h: 600
Inlet connection: G 1/2" x2
Outlet connection: G 1"
Height mm: 750
Width mm: 650
Depth mm: 240
Specifications
The SWO 100 water–oil separator is used in compressed air installations to treat condensate generated during compression. It separates oil from water to allow discharge of treated water to the sewer in compliance with environmental requirements and applicable standards.
Application
The SWO 100 is intended for high-capacity systems, handling flows up to 10000 l/min (600 m³/h). It is suitable for extensive industrial installations where condensate volumes are high and efficient separation is required.
Design features
The unit is equipped with two G 1/2" inlet connections and a G 1" outlet connection to facilitate integration with existing compressed air networks. The compact construction with dimensions 750 x 650 x 240 mm allows installation in technical spaces without occupying large floor area.
Technical data
Flow l/min: 10000
Flow m³/h: 600
Inlet connection: G 1/2" x2
Outlet connection: G 1"
Height mm: 750
Width mm: 650
Depth mm: 240
Specifications
- Flow: 10000 l/min (600 m³/h)
- Connections: inlet G 1/2" x2, outlet G 1"
- Dimensions: 750 x 650 x 240 mm (H x W x D)
