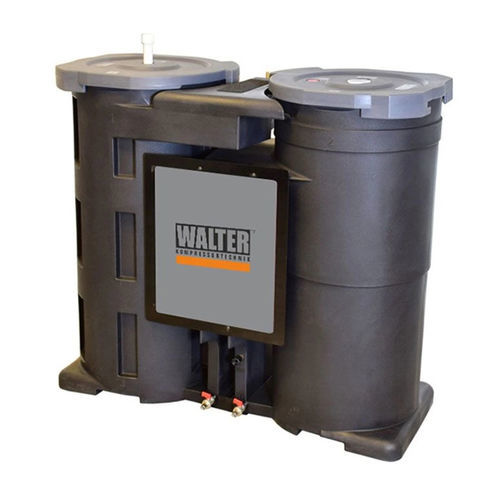

Condensate separator SWO 600

for air compressors

Product
The oil–water separator SWO 600 is designed to treat condensate produced in compressed-air systems. It separates oil from water and allows treated water to be discharged to the sewer in compliance with environmental regulations. Use of the separator reduces the volume of hazardous waste and lowers disposal costs.

Performance and application
The SWO 600 model is rated for very high flows, up to 60,000 l/min (3,600 m³/h), making it suitable for large compressed-air installations with intensive operation and substantial condensate production.

Connections and dimensions
The unit is equipped with inlet connections G 1/2" x2 and outlet G 1", enabling integration with complex pneumatic systems. Overall dimensions 1040 x 1160 x 480 mm allow installation in industrial settings while maintaining separation capacity.

Technical data:
Flow l/min: 60000
Flow m3/h: 3600
Inlet connection: G 1/2" x2
Outlet connection: G 1"
Height mm: 1040
Width mm: 1160
Depth mm: 480

Features / specifications

• Purpose: treatment of condensate from compressed-air systems; oil–water separation
• Capacity: up to 60,000 l/min (3,600 m³/h)
• Connections: inlet G 1/2" x2, outlet G 1"
• Dimensions (HxWxD): 1040 x 1160 x 480 mm
• Application: large industrial installations with high condensate production
• Benefits: reduces hazardous waste volume and disposal costs
