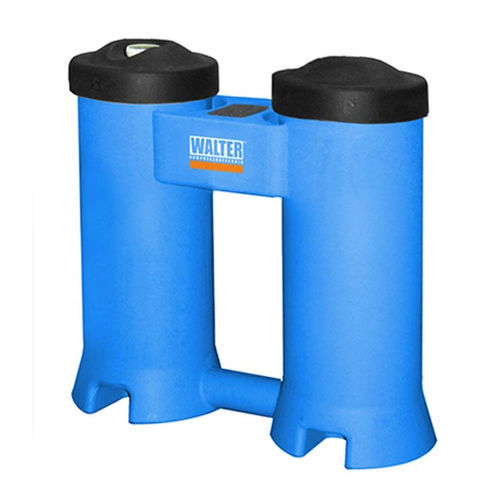

Condensate collection vessel SWO 80

Product overview
The SWO 80 water-oil separator is designed to treat condensate produced in compressed air systems. It separates oil from water in the condensate to allow safe discharge of the treated liquid to sewer systems and to meet environmental requirements. This solution reduces waste requiring disposal and lowers installation operating costs.

Performance and application
The SWO 80 model is built for heavy-duty operation and handles flows up to 8000 l/min (480 m3/h). It is suitable for large compressed air installations where condensate volumes are significant and require effective treatment.

Installation and dimensions
The unit is fitted with two inlet connections G 1/2" and one outlet connection G 1/2" for easy integration into existing pneumatic infrastructure. Unit dimensions: 650 x 650 x 250 mm, allowing installation in technical spaces while maintaining high separation performance.

Technical data
Flow l/min: 8000
Flow m3/h: 480
Inlet connection: G 1/2" x2
Outlet connection: G 1/2"
Height mm: 650
Width mm: 650
Depth mm: 250

Features / technical specifications

• Application: separation of oil from condensate in compressed air systems
• Nominal capacity: 8000 l/min (480 m3/h)
• Connections: inlet G 1/2" x2, outlet G 1/2"
• Dimensions (HxWxD): 650 x 650 x 250 mm
• Typical use: large compressed air systems, industrial installations
• Benefits: reduces waste disposal requirements and operating costs
