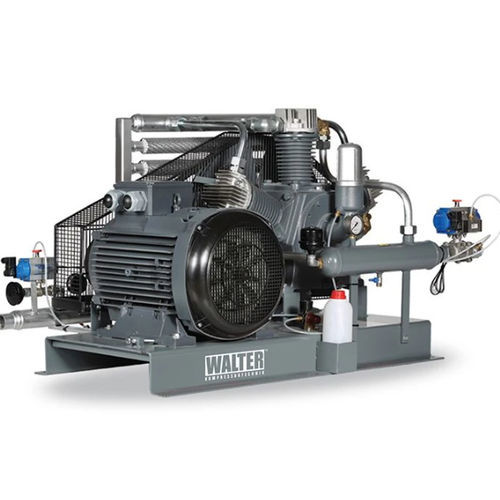

Volume pneumatic booster BO 15

pressure

Description
BO 15 is a device designed to increase compressed air pressure in industrial installations, allowing higher working parameters in the 15–40 bar range. The booster operates as a supporting element for pneumatic systems, raising air pressure after primary compression to meet process requirements.

Drive and performance
The model is fitted with a 15 kW drive. Depending on inlet pressure (7 / 10 / 13 bar) the unit delivers 3.71 / 5.10 / 6.49 m³/min, enabling operation in systems with high compressed air demand.

Design and application
Compact construction with dimensions 1357 x 820 x 758 mm and a weight of 300 kg allows easy integration into existing compressed air systems. The booster is designed for continuous operation, providing stable compression parameters and industrial reliability.

Technical data
Pressure (bar): 15-40
Inlet pressure (bar): 7 / 10 / 13
Power (kW): 15
Flow (m3/min): 3.71 / 5.10 / 6.49
Weight (kg): 300
Length (mm): 1357
Width (mm): 820
Height (mm): 758

Key features / specifications

• Purpose: increases compressed air pressure in industrial installations
• Drive power: 15 kW
• Operating pressure range: 15–40 bar
• Inlet pressure: 7 / 10 / 13 bar
• Flow: 3.71 / 5.10 / 6.49 m³/min (depending on inlet pressure)
• Dimensions (L × W × H): 1357 × 820 × 758 mm
• Weight: 300 kg
• Compact design for continuous industrial operation
