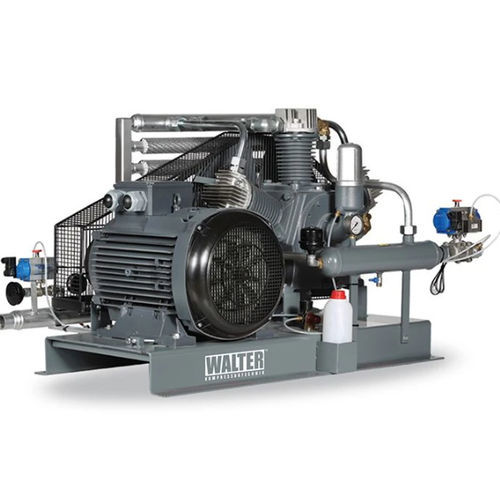

Volume pneumatic pressure booster BO 18,5

pressure

Description
The BO 18,5 is an industrial piston booster designed to raise the pressure of compressed air in operational installations where pressures of 15–40 bar are required. It supports pneumatic systems by boosting medium pressure after primary compression to meet process specifications.

Performance and drive
The 18.5 kW drive delivers efficient and stable performance across varying supply conditions. At inlet pressures of 7 / 10 / 13 bar the unit achieves flows of 4.90 / 6.73 / 8.57 m3/min, enabling supply to systems with high compressed-air demand.

Design and dimensions
Compact construction engineered for continuous industrial operation, ensuring reliability and facilitating integration. Dimensions and weight simplify installation within existing pneumatic systems.

Technical data

• Application: piston booster for increasing compressed-air pressure in industrial installations
• Drive power: 18.5 kW
• Working pressure range: 15–40 bar
• Inlet pressure and corresponding flow: 7 bar – 4.90 m3/min; 10 bar – 6.73 m3/min; 13 bar – 8.57 m3/min
• Dimensions (L×W×H): 1423 × 874 × 736 mm
• Weight: 345 kg
• Construction: compact, designed for continuous industrial operation
