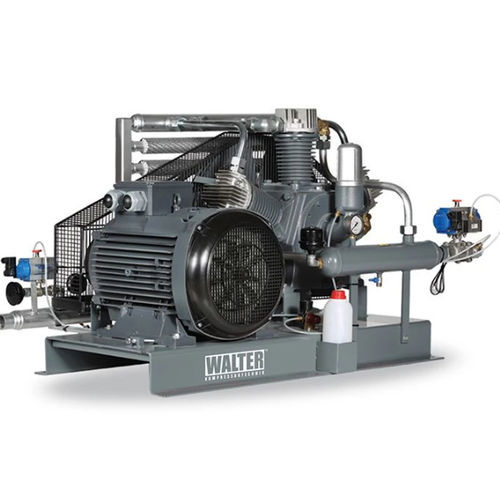

Volume pneumatic pressure booster BO 22

pressure

Product description
The BO 22 piston air booster is designed to increase the pressure of compressed air in industrial installations requiring operating parameters between 15 and 40 bar. It raises the medium pressure after primary compression to match process and pneumatic receiver requirements. The 22 kW drive provides the power required for the specified flow rates. At inlet pressures of 7 / 10 / 13 bar the unit delivers 5.56 / 7.65 / 9.74 m³/min. The compact industrial construction (1423 x 881 x 736 mm) and weight of 390 kg allow integration with existing pneumatic systems. Designed for continuous operation in production environments.

Technical data
Pressure (bar) : 15-40
Inlet pressure (bar) : 7 / 10 / 13
Power kW : 22
Flow m3/min : 5.56 / 7.65 / 9.74
Weight kg : 390
Length mm : 1423
Width mm : 881
Height mm : 736

Key features / technical specifications

• Type: piston booster for raising compressed air pressure
• Operating pressure range: 15–40 bar
• Inlet pressure and corresponding flow: 7 bar → 5.56 m³/min; 10 bar → 7.65 m³/min; 13 bar → 9.74 m³/min
• Drive power: 22 kW
• Intended use: continuous operation in industrial environments
• Dimensions (L × W × H): 1423 × 881 × 736 mm
• Weight: 390 kg
• Construction: compact industrial design for integration with pneumatic installations
