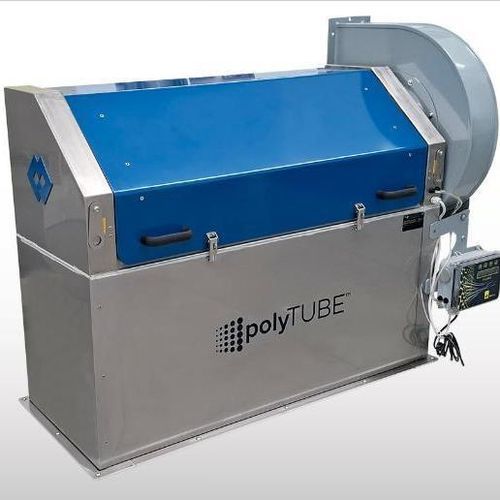

Filter dust collector WAMAIR Spot polyTUBE™

mechanical shaker cleaningcompactself-cleaning

Presentation WAMAIR Spot polyTUBE is a compact localized dust collector designed for handling and process machines. Its stainless-steel housing contains vertically mounted polyTUBE filter elements with ZERO nano-fibre media to deliver high filtration efficiency, reduced dust residue and low energy use.

Function WAMAIR Spot polyTUBE is a polygonal collector with integrated fan for extraction of dust from mechanical conveyors. Dust separated by the filter elements is removed by an electrically driven pulse mechanical cleaning system mounted on an energy distribution plate; separated dust can be returned to the process. The cleaning system includes isolation devices and centralized control for efficient operation.

Features

• Compact polygonal design for localized installation
• Low element height (≈500 mm) for safe, easy maintenance on silo or conveyor roofs
• Weather protection cover with lockable quick-release and gas spring
• Tool-free removal of filter elements
• polyTUBE tubular elements with ZERO nano-fibre media (≈4× performance vs conventional elements)
• High-performance electrically driven pulse mechanical cleaning with energy distribution plate
• Low dust emissions due to ZERO filter media
• Reduced energy consumption and lower noise (≈3× lower noise than pneumatic pulse-jet; ~-9 dB(A))
• Automated management and monitoring via FILMEC electronic controller with USB recording and MODBUS
• International patents

Benefits

• No compressed air required
• Lower installation and operating costs
• Minimised dust emissions
• Very low energy consumption (< 100 kWh/year indicative)
• Reduced noise and improved plant safety
• Stable long-term performance without dust residue buildup

Accessories

• VPA

Technical description polyTUBE filtration combines open-profile tubular cell elements with ZERO nano-fibre media to minimise dust retention and maintain filtration efficiency over time. The cover provides easy maintenance access and is lockable; the pulse mechanical cleaning is electrically actuated and mounted on an energy distribution plate to ensure uniform cleaning and energy efficiency. FILMEC controller provides automatic control and data logging.

Technical specifications

• Housing: stainless steel
• Filter elements: vertically mounted polyTUBE tubular cells
• Filter media: ZERO nano-fibre
• Element height: approx. 500 mm
• Cleaning: electrically driven pulse mechanical cleaning with energy distribution plate
• Access: lockable quick-release cover with gas spring
• Control: FILMEC electronic controller (USB, MODBUS)
• Energy consumption: indicative < 100 kWh/year
• Noise: ≈3× lower than pneumatic pulse-jet (~-9 dB(A))
• Operation: no compressed air required
• Patents: international patents
