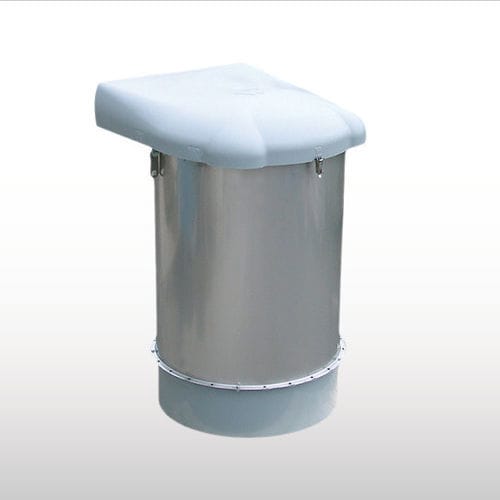

Cartridge dust collector SILOTOP

reverse air cleaningcompactself-cleaning

Overview
With tens of thousands of units in service worldwide since 1998, SILOTOP is a proven solution for venting and dust control of pneumatically filled bins and silos. The unit features a cylindrical stainless steel body with vertically mounted POLYPLEAT filter elements and an integrated reverse air-jet cleaning system housed in a hinged weather protection cover.

Function
SILOTOP separates dust from the air stream using POLYPLEAT filter elements. An automatic reverse air-jet cleaning sequence inside the weather cover dislodges dust from the elements so that it falls back into the silo.

Features

• Compact stainless steel body Ø 800 mm with welded bottom flange for silo connection
• Filter surface: 24.5 m² (264 sq ft)
• Maintenance height: 1,100 mm (3.6 ft)
• Vertically mounted POLYPLEAT filter elements for high filtration efficiency
• Low dust emission with B.I.A.-certified filter media
• Maintenance-free reverse air-jet cleaning unit integrated within the weather protection cover
• Hinged weather protection cover with lockable quick-release
• Tool-free removal of filter elements

Benefits

• Compact design for easy access and installation
• Quick, single-person filter element replacement
• Reliable operation with low emission performance

Options

• Weld-on bottom ring
• Multifunctional electronic differential pressure meter
• Winter protection for solenoid valves

Technical characteristics / specifications

• Product type: Cylindrical silo venting dust collector
• Model: SILOTOP
• Body material: Stainless steel
• Diameter: 800 mm (30 in)
• Filter medium: POLYPLEAT filter elements
• Filter surface: 24.5 m² (264 sq ft)
• Maintenance height: 1,100 mm (3.6 ft)
• Cleaning: Integrated reverse air-jet cleaning unit inside weather protection cover
• Emission performance: Low dust emission with B.I.A.-certified filter media
• Access / maintenance: Tool-free element removal; lockable quick-release weather cover
