Corded electric screwdriver SEV-P

pistolwith vacuum pickupservo

Overview

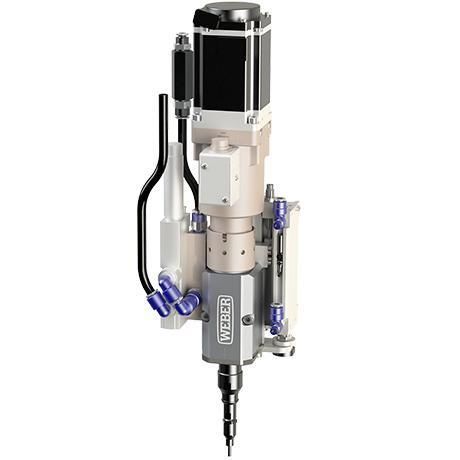

The SEV-P is a pick & place fixtured screwdriver for lightweight robots (LBR). It does not include automatic screw feeding; optional vacuum reliably guides fasteners to the screw location. Its extremely compact design allows weights from 1.5 kg. The tool features an ISO 9409-1-50-4-M6 flange for adaptation to a wide range of lightweight robots and is suitable for battery assembly/disassembly and other pick & place fastening tasks.

Tool changer & application
An expandable automatic tool change system with RFID tool identification (read & write) enables integration and swapping of multiple tools and supports fully automated assembly of different fasteners and screwdriving programs. The SEV-P can be fitted with optional vacuum for reliable fastener transport and with an optional head stroke slide providing pneumatic stroke and active depth measurement.

Features

• Optional vacuum for reliable fastener transport in recessed and hard-to-reach locations
• Pick & place fastening solution with vacuum transport
• Robot flange ISO 9409-1:2004 (50-4-M6)
• Modular design for integration of multiple tools
• Electric EC servo drive
• Suitable for collaborative lightweight robots (LBR) and industrial robots
• Automatic tool change with RFID tool identification (read & write)
• Optional pneumatic head stroke slide with active depth measurement

Technical data (table)
Series | SEV-P10 | SEV-P30 | SEV-P60
Torque range [Nm] | 1 – 10 | 3 – 30 | 6 – 60
Max. rotation speed [rpm] | 2,500 | 1,500 | 850
Head diameter [mm] / Nut size | as needed | as needed | as needed
Weight with / without slide [kg] | 4.6 / 3.5 | 9.5 / 8 | 20 / 14
Bit stroke (spindle internal) [mm] | 5 | 5 | 10
Axial force internal bit stroke [N] | 5 | 5 | 5
Head stroke slide [mm] | 50 | 50 | 125
Max. screw location recess [mm] | 130 | 180 | 130
Axial force head stroke [N] | 50 | 50 | 125
Tool holding coupler | 1/4" | 5/16" | 7/16"
*With direct drive. Technical changes reserved.

Applications & advantages
The SEV-P is optimized for pick & place screwdriving where minimal flange weight at the robot, reliable fastener transport, modular tool change and precise screwdriving (optional depth measurement) are required. Typical applications include battery assembly/disassembly and other robotic pick & place fastening tasks.

Technical specifications

• Model: SEV-P series (SEV-P10 / SEV-P30 / SEV-P60)
• Weight: from 1.5 kg (compact design)
• Mounting flange: ISO 9409-1-50-4-M6
• Tool change: automatic tool changer with RFID tool identification (read & write)
• Vacuum option: for pick & place transport of fasteners
• Drive: electric (EC) servo
• Available torque ranges: 1–10 Nm, 3–30 Nm, 6–60 Nm
• Max. speeds: up to 2,500 rpm depending on series
• Bit stroke (internal): 5 mm (P10/P30), 10 mm (P60)
• Head stroke slide lengths: 50 mm (P10/P30), 125 mm (P60)
• Tool holding coupler sizes: 1/4" (P10), 5/16" (P30), 7/16" (P60)
• Max. screw recess capability: up to 180 mm (depending on series)
