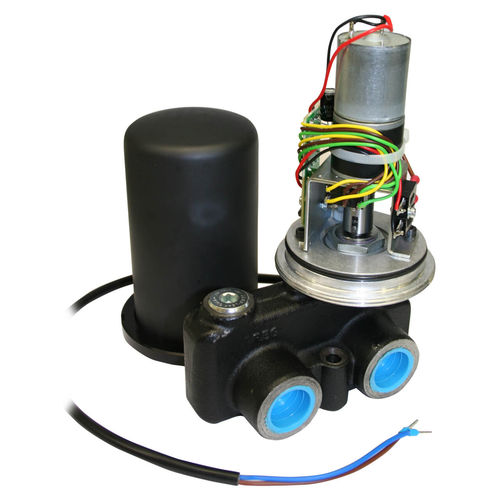

Hydraulic flow divider VFD120-E

oilvariable-prioritysteel

Aimed at mobile and industrial applications the VFD120-E can be used for controlling hydraulic motor and cylinder speeds by applying voltage to the valve which in turn controls the flow rate. Variable priority flow dividers split a single input (P) flow into a priority (REG) flow and an excess or by-pass (BP) flow which can be returned directly to the oil reservoir or used to power a second system. This is possible due to the valve’s adaptive pressure compensation characteristics meaning both the priority and by-pass flows can be used to drive separate circuits, even under varying loads. In many instances this dispenses with the need for another pump to operate a second system. The VFD120-E design has also been optimised to reduce energy wastage by minimising the pressure losses across the valve, resulting in a significant reduction in running costs. Porting: BSPP, SAE, NPTF, METRIC Material: Steel components in cast Ductile Iron body painted black Drive Mechanism mounted on aluminium plate and mild steel bracket. Weight: 2.75 kg, 4.4 lb Mounting: 2 Bolts - M8 or 5/16” Peak Current: 1 A
